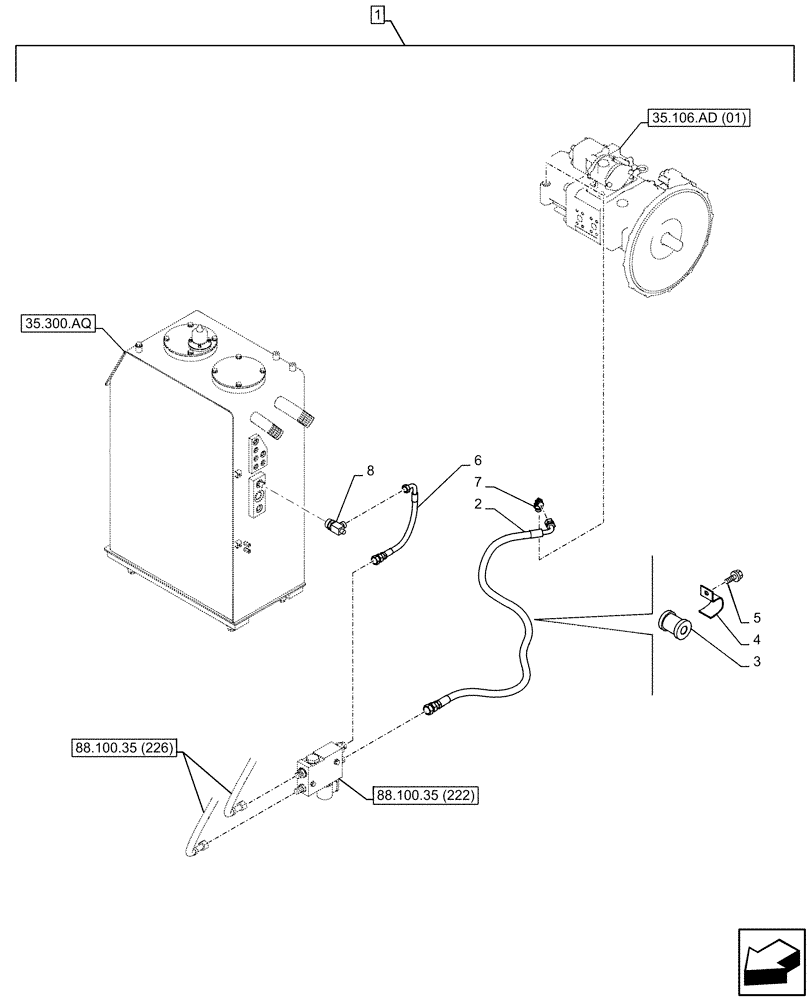

Запчасти Case CX210D LC (88.100.35[223]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (88) - ACCESSORIES

1

KG2RP270-00

CONSTRUCTION DIA

Quick Coupler Line, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KWJ11020

HYDRAULIC HOSE,9.52 mm ID x 1200.00 mm

09mm ID x 1200mm

1шт.

3

KHJ33450

HOSE CLAMP

1шт.

4

KHJ2025

CLAMP

1шт.

5

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20xx

1шт.

6

KHJ1388

HYDRAULIC HOSE,9.52 mm ID x 320.00 mm

9mm ID x 320mm

1шт.

7

KHJ28710

ELBOW

G3/8" X G3/8"

1шт.

8

KHJ1300

TEE

1шт.
