(88.100.35[222]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, WIRE HARNESS

Запчасти Case CX210D LC (88.100.35[222]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES

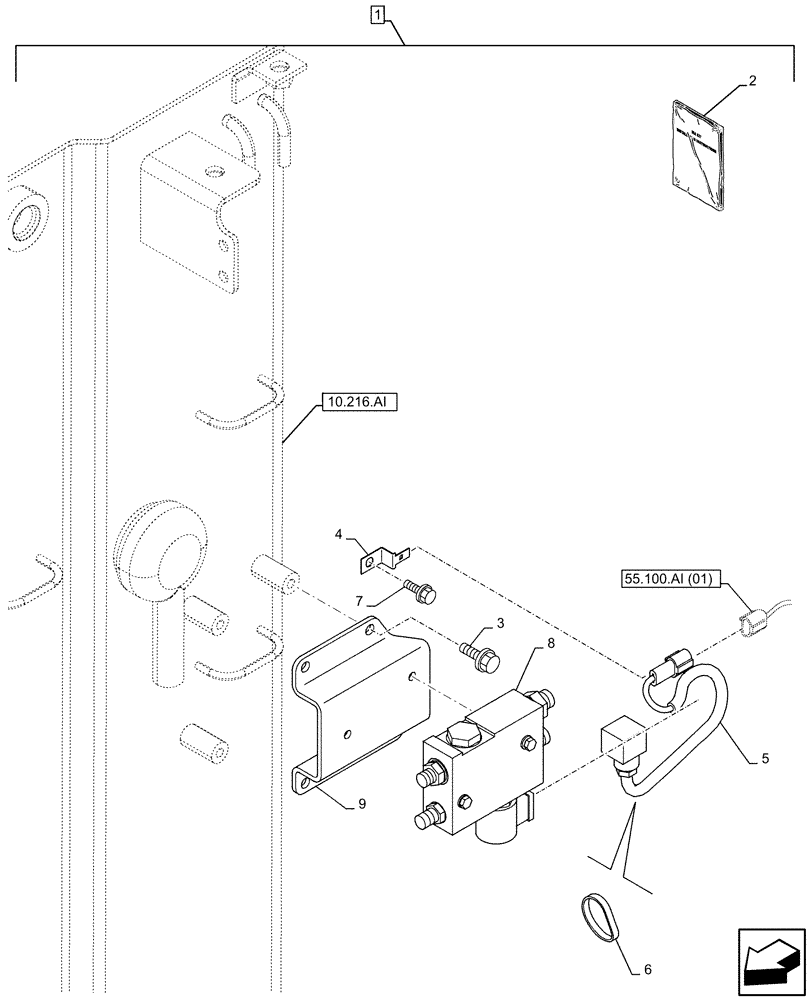

Схема запчастей Case CX210D LC - (88.100.35[222]) - DIA KIT, QUICK COUPLER, SOLENOID VALVE, WIRE HARNESS (88) - ACCESSORIES
55.100.ai (01)
8
1
5
3
10.216.ai
6
7
2
9
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP270-00

CONSTRUCTION DIA

Quick Coupler Line, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47900036

INSTRUCTION

1шт.

2

47929327

INSTRUCTION

1шт.

2

47928777

INSTRUCTION

1шт.

3

166350A1

BOLT

M8 x 20mm

3шт.

4

158962A1

CLIP

1шт.

5

KHR39410

WIRE HARNESS

1шт.

6

150496A1

MOUNTING CLIP

250mm

1шт.

7

167518A1

BOLT

M8 x 16mm

1шт.

8

KHJ29790

VALVE

1шт.

9

KBJ24700

BRACKET

1шт.
