(88.100.35[168]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS

Запчасти Case CX210D LC (88.100.35[168]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES

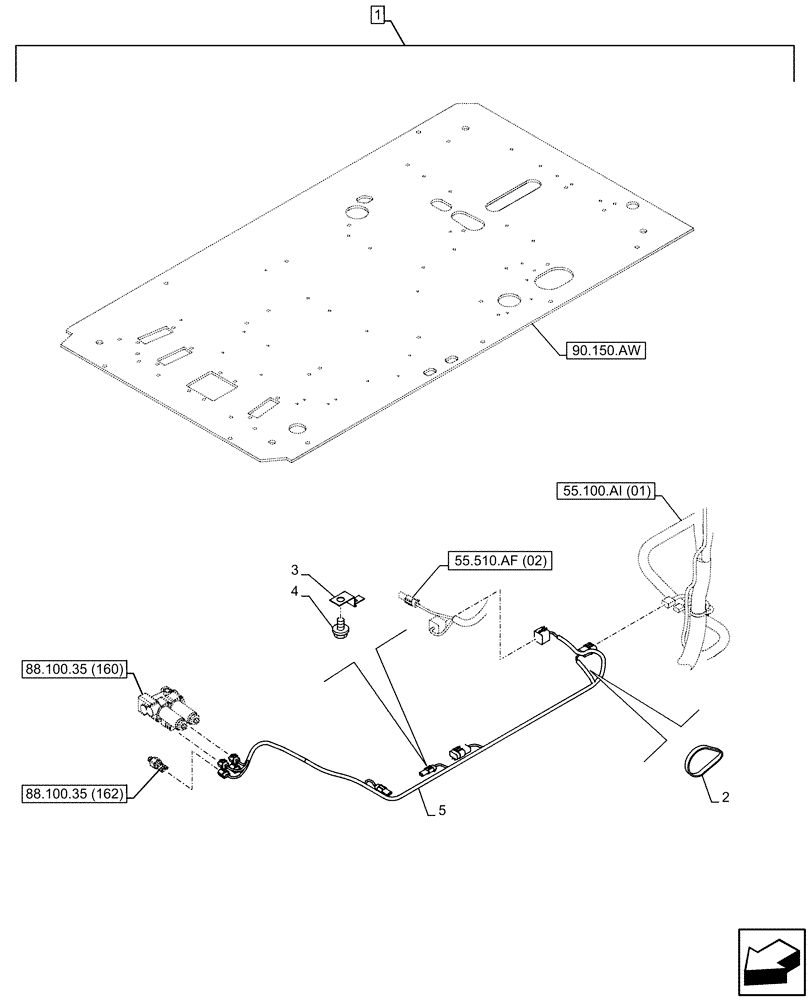

Схема запчастей Case CX210D LC - (88.100.35[168]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES
4
3
55.510.af (02)
5
55.100.ai (01)
88.100.35 (162)
90.150.aw
1
2
88.100.35 (160)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP262-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150496A1

MOUNTING CLIP

250mm

6шт.

3

165405A1

CLIP

3шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.

5

KHR39501

WIRE HARNESS

1шт.
