(88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SPEED SENSOR

Запчасти Case CX210D LC (88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SPEED SENSOR (88) - ACCESSORIES

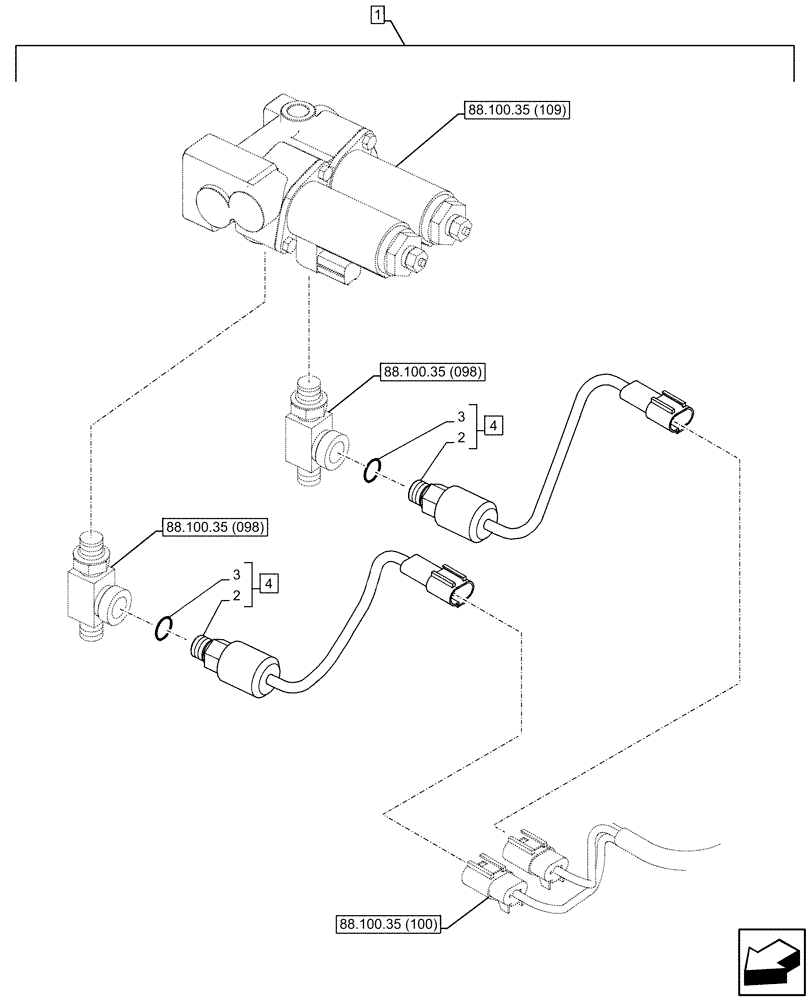

Схема запчастей Case CX210D LC - (88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SPEED SENSOR (88) - ACCESSORIES
88.100.35 (098)
3
88.100.35 (098)
88.100.35 (100)
88.100.35 (109)
3
1
2
4
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP268-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Sensor Fitting, incl in 4

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

4

KHR21490

PRESSURE SWITCH

ASSY, 0.49MPa, Incl 2, 3

2шт.
