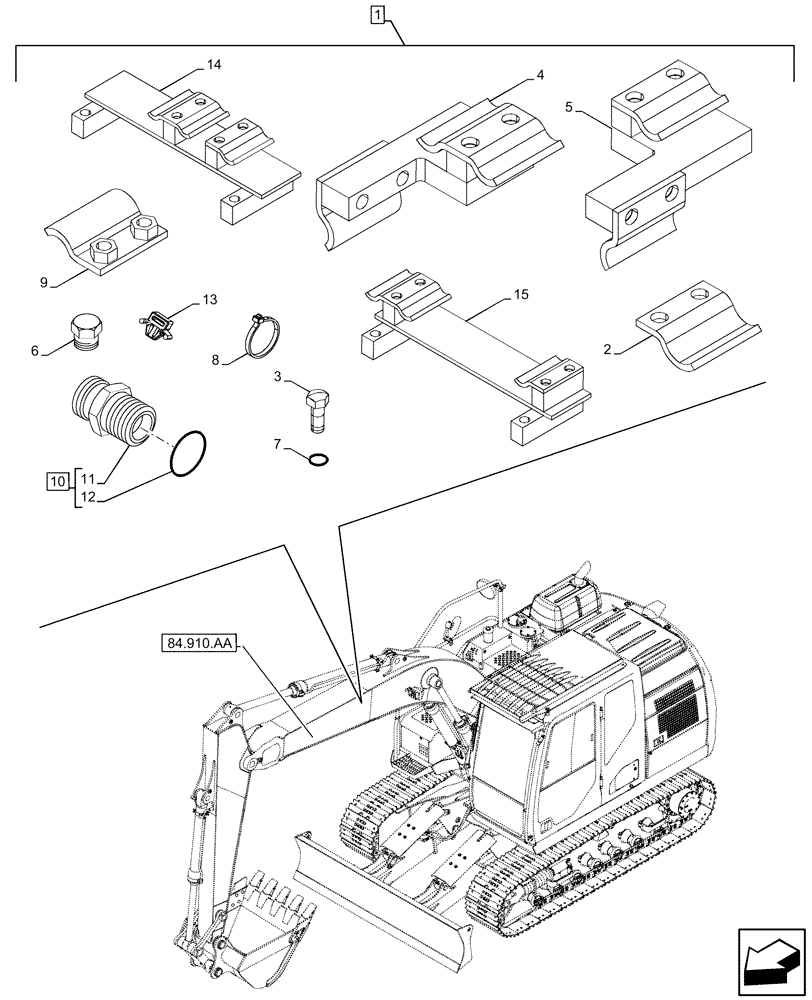

Запчасти Case CX210D LC (88.100.35[090]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, CLAMP, PLUG, ADAPTER (88) - ACCESSORIES

1

KG2RP267-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHV10500

COLLAR CLAMP

6шт.

2

KHV10480

COLLAR CLAMP

6шт.

3

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

18шт.

3

166352A1

BOLT

16шт.

3

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

M6 x 8mm

2шт.

4

KNV13810

BAR

3шт.

5

KNV13820

BAR

3шт.

6

158841A1

PLUG

3шт.

7

154487A1

O-RING

1шт.

8

150498A1

MOUNTING CLIP

297mm

8шт.

8

150496A1

MOUNTING CLIP

250mm

8шт.

9

KHV11640

PIPE CLAMP

2шт.

10

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2 G1/2, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Adapter, Incl in 10

1шт.

12

150539A1

O-RING

1шт.

13

150860A1

COLLAR

25mm x 14.5mm x 12mm, 6.3mm D

2шт.

14

KRV20290

BAR

1шт.

15

KRV20300

BAR

2шт.
