(88.100.35[087]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS

Запчасти Case CX210D LC (88.100.35[087]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES

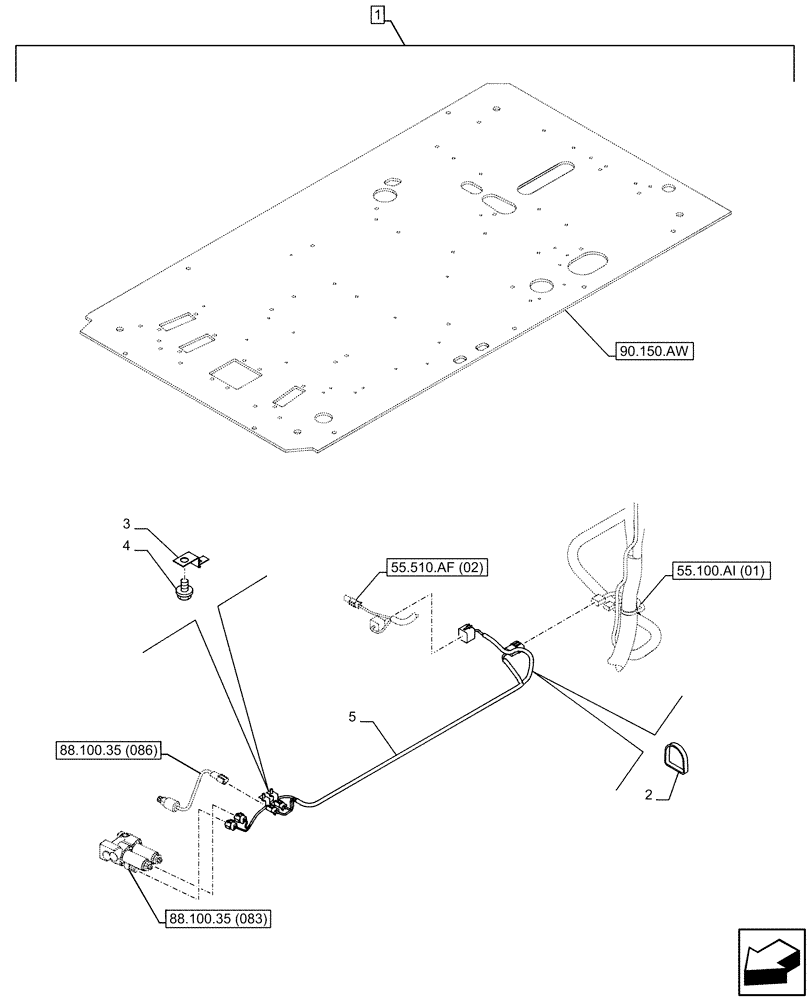

Схема запчастей Case CX210D LC - (88.100.35[087]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES
55.100.ai (01)
88.100.35 (086)
3
88.100.35 (083)
90.150.aw
55.510.af (02)
5
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP267-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150496A1

MOUNTING CLIP

250mm

1шт.

3

165405A1

CLIP

2шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

5

KHR40410

WIRE HARNESS

1шт.

Выбрано товаров: 6
