(88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX210D LC (88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

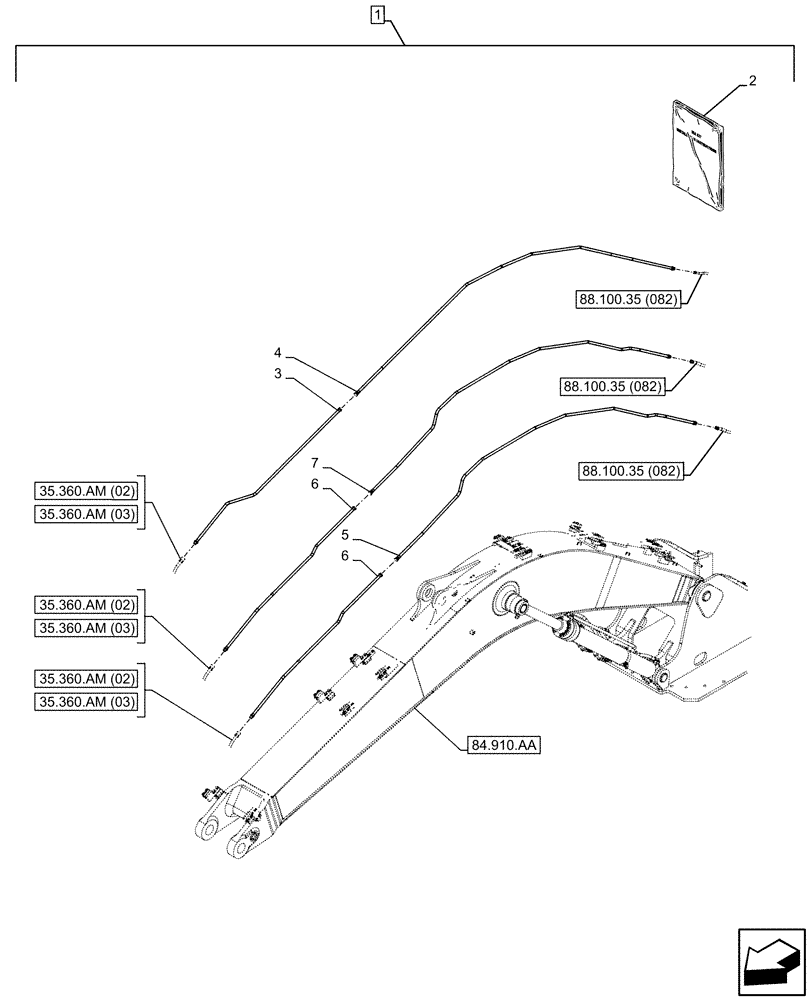

Схема запчастей Case CX210D LC - (88.100.35[078]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
88.100.35 (082)
6
35.360.am (02)
35.360.am (02)
88.100.35 (082)
7
88.100.35 (082)
2
5
35.360.am (03)
35.360.am (02)
1
3
6
84.910.aa
35.360.am (03)
4
35.360.am (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP267-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47844473

INSTRUCTION

1шт.

2

47844485

INSTRUCTION

1шт.

3

KRV40190

PIPE

1шт.

4

KRV32710

PIPE

1шт.

5

KRV32720

PIPE

1шт.

6

KRV40180

PIPE

2шт.

7

KRV42280

PIPE

1шт.
