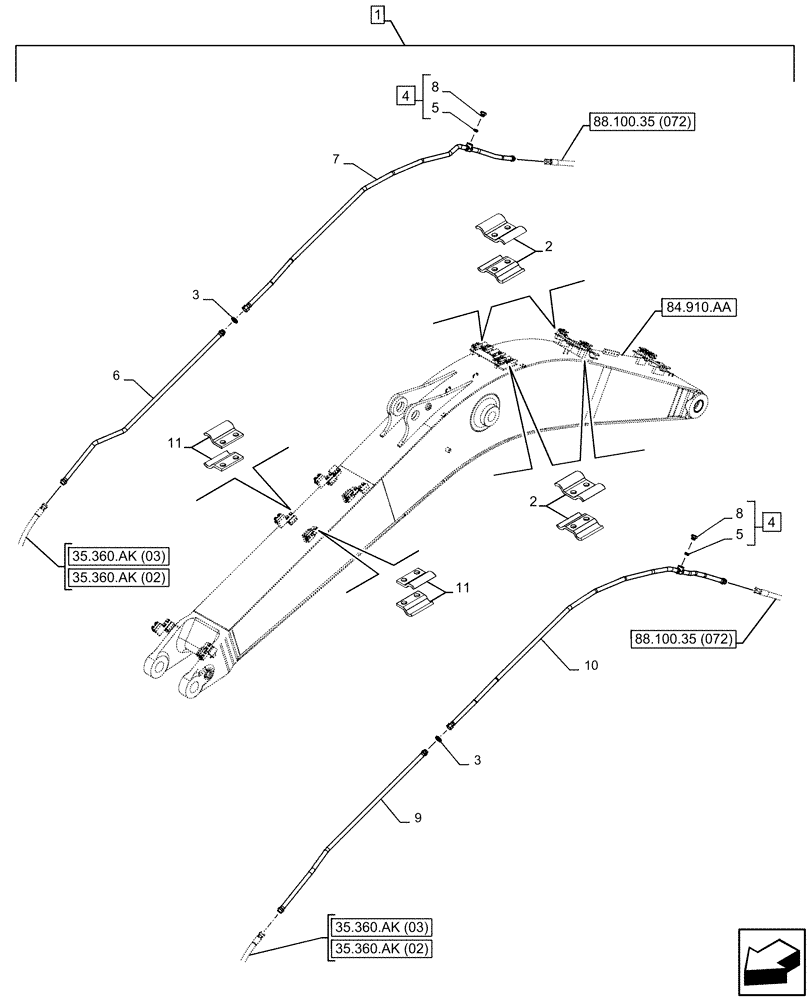

Запчасти Case CX210D LC (88.100.35[073]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG2RP264-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHV10610

COLLAR CLAMP

8шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

4

152924A1

PLUG

ASSY, Incl 5, 8

2шт.

5

154503A1

O-RING

2шт.

6

KRV40170

PIPE

34mm ID x 1745mm, Down, RH

1шт.

7

KRV32671

HYD TUBE

34mm ID x 2674mm, Upper, RH

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

9

KRV40160

PIPE

34mm ID x 1745mm, Down, LH

1шт.

10

KRV32661

HYD TUBE

34mm ID x 2674mm, Upper, LH

1шт.

11

KHV10630

COLLAR CLAMP

4шт.
