(88.100.35[066]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, WIRE HARNESS

Запчасти Case CX210D LC (88.100.35[066]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, WIRE HARNESS (88) - ACCESSORIES

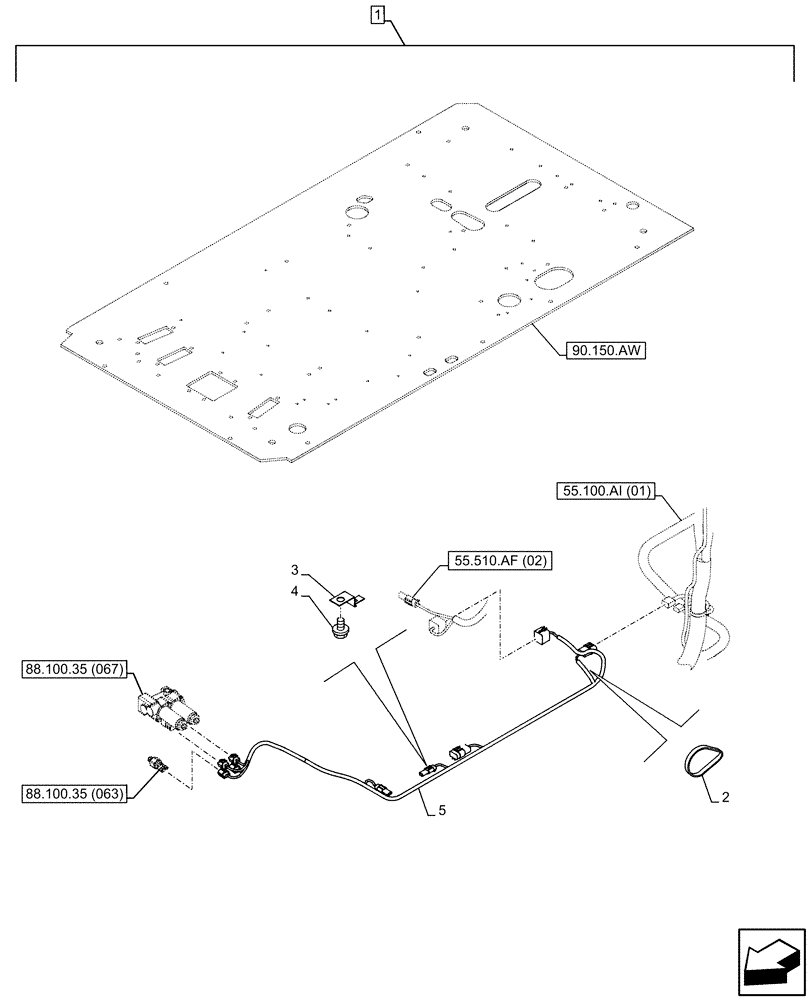

Схема запчастей Case CX210D LC - (88.100.35[066]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, WIRE HARNESS (88) - ACCESSORIES
1
55.510.af (02)
5
88.100.35 (067)
55.100.ai (01)
4
2
88.100.35 (063)
90.150.aw
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG2RP264-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150496A1

MOUNTING CLIP

L=250mm

2шт.

3

165405A1

CLIP

3шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

3шт.

5

KHR39501

WIRE HARNESS

1шт.

Выбрано товаров: 6
