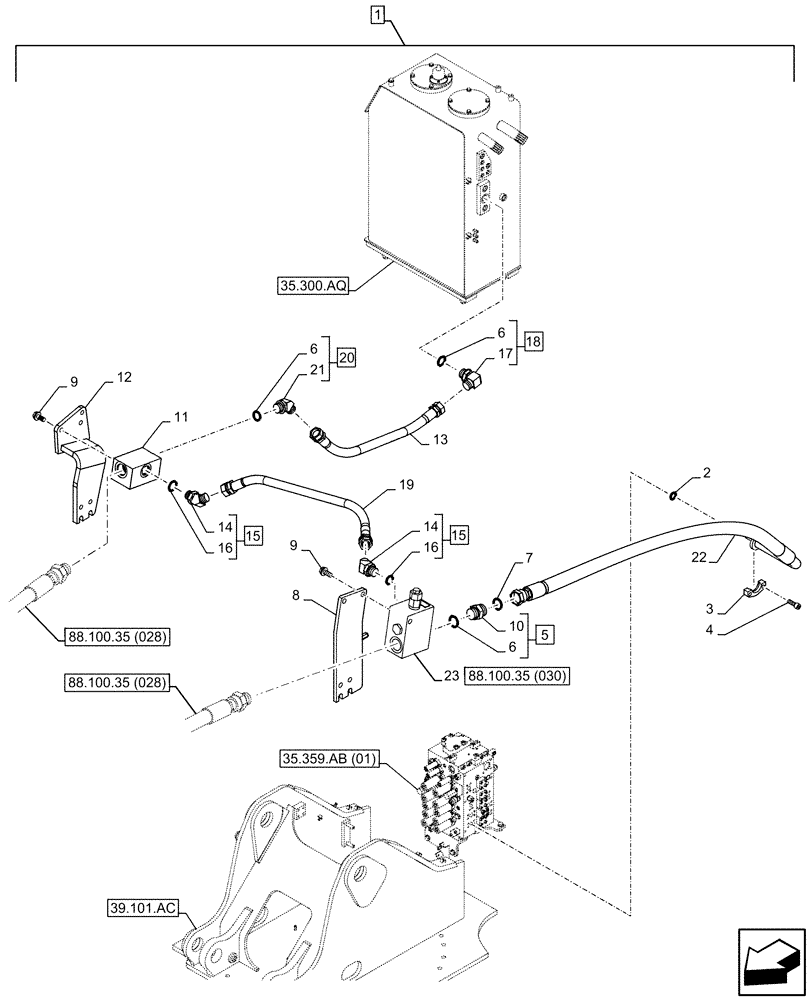

Запчасти Case CX210D LC (88.100.35[029]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES

1

KG2RP258-00

CONSTRUCTION DIA

Breaker Circuit Proportional Control Kit, Incl 2 - 23

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1349

ADAPTER

ASSY, Incl 6 (Qty 1), 10

1шт.

6

154523A1

O-RING

3шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

8

KRJ11470

SUPPORT

1шт.

9

166352A1

BOLT

12шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

11

KRJ16400

MANIFOLD VALVE

1шт.

12

KRJ16050

SUPPORT

1шт.

13

KBJ19800

HYDRAULIC HOSE

Manifold Valve to Hydraulic Oil Tank, 25mm ID x 730mm

1шт.

14

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 15

2шт.

15

157586A1

ELBOW

ASSY, G3/4" x G3/4", Incl 14, 16

2шт.

16

154503A1

O-RING

2шт.

17

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 18

1шт.

18

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

ASSY, G1" x G1", Incl 6 (Qty 1), 17

1шт.

19

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

Relief Valve T Port to Manifold Valve Side

1шт.

20

157587A1

ELBOW

ASSY, G1" x G1", Incl 6 (Qty 1), 21

1шт.

21

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 20

1шт.

22

KRJ36930

HYDRAULIC HOSE

Relief Valve B Port to Control Valve A2 Port, 25mm ID x 870mm

1шт.

23

KHJ15050

VALVE PRESSURE RELIE

ASSY

1шт.
