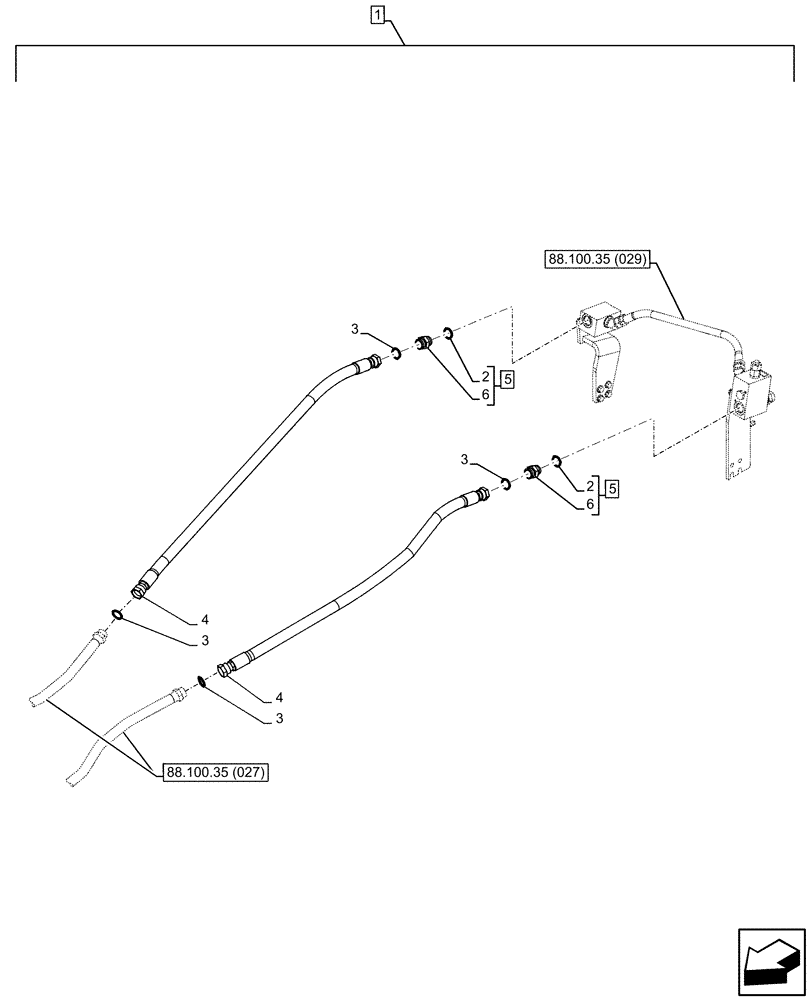

Запчасти Case CX210D LC (88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG2RP258-00

CONSTRUCTION DIA

Breaker Circuit Proportional Control Kit, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154523A1

O-RING

2шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

4

KSJ13741

HYDRAULIC HOSE

Boom Line to Manifold Valve, 27mm ID x 1300mm

2шт.

5

KHJ1349

ADAPTER

ASSY, Incl 2, 6

2шт.

6

NSS

NOT SOLD SEPARAT

Adapter, Incl in 5

2шт.
