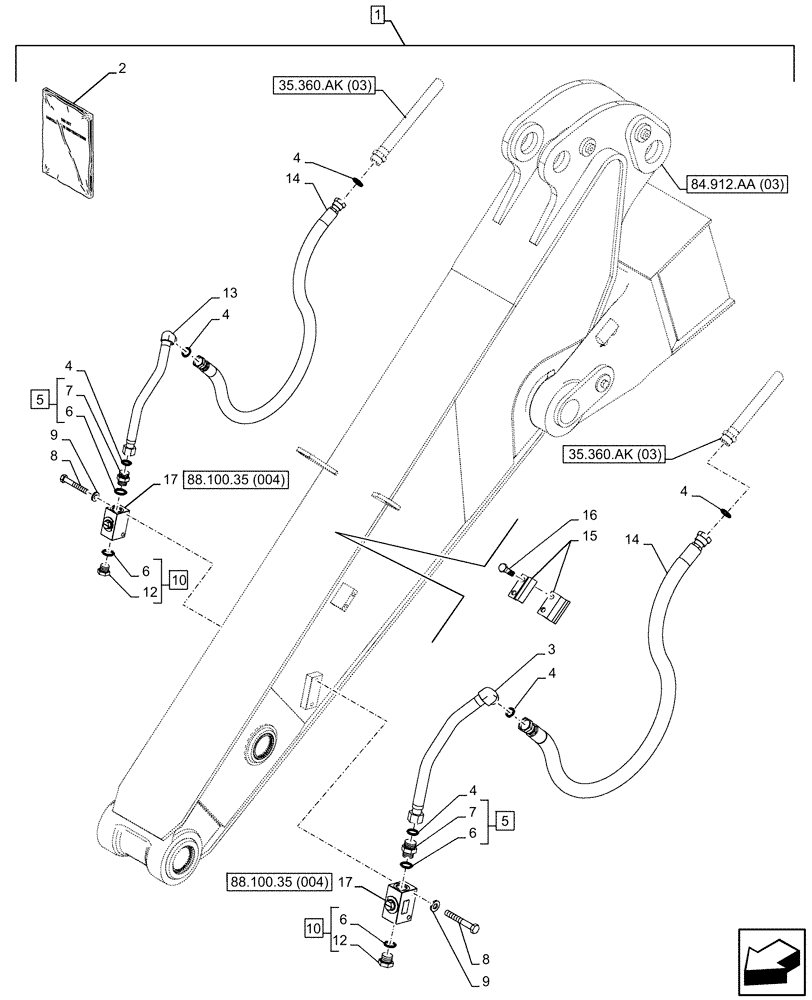

Запчасти Case CX210D LC (88.100.35[003]) - DIA KIT, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM, SHORT (L=1.9M) (88) - ACCESSORIES

1

KG2RP315-00

CONSTRUCTION DIA

Option Line, Bar Base, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47880465

INSTRUCTION

1шт.

3

KRV23390

HYD TUBE

1шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.

5

KHJ1349

ADAPTER

ASSY, Incl 6 (Qty 2), 7

2шт.

6

152211A1

O-RING

4шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

8

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

M12 x 25mm

2шт.

9

150811A1

WASHER

2шт.

10

162659A1

PLUG

Aassy, Incl 6 (Qty 2), 12

2шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

2шт.

13

KRV23400

HYD TUBE

1шт.

14

KBV23640

HYDRAULIC HOSE

25mmID x 1600mm

2шт.

15

KHV10630

COLLAR CLAMP

4шт.

16

166352A1

BOLT

4шт.

17

KHV10430

SHUT-OFF VALVE

ASSY

2шт.
