Запчасти Case CX210D LC (84.100.AM[01]) - VAR - 461023, 488046, 481064 - BUSHING, BUCKET, LINK (84) - BOOMS, DIPPERS & BUCKETS

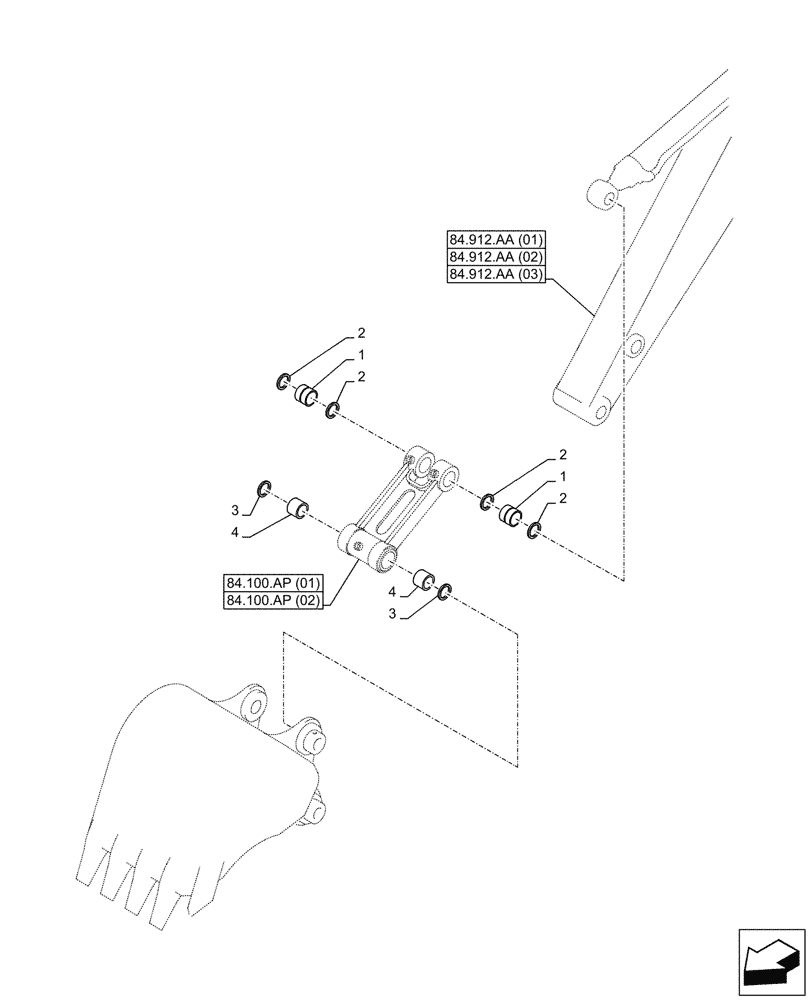

Схема запчастей Case CX210D LC - (84.100.AM[01]) - VAR - 461023, 488046, 481064 - BUSHING, BUCKET, LINK (84) - BOOMS, DIPPERS & BUCKETS
1
3
84.100.ap (01)
2
4
84.912.aa (02)
4
84.912.aa (01)
1
3
2
84.912.aa (03)
84.100.ap (02)
2
2

Артикул

Название

Примечание

Количество

1

KRV2395

SELF LUB RING

2шт.

Parts are Included in Link Assembly PN KRV20241, PN KRV20780

1шт.

2

160401A1

SEAL,85mm ID x 100mm OD x 5mm Thk

4шт.

Parts are Included in Link Assembly PN KRV20241, PN KRV20780

1шт.

3

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

2шт.

Parts are Included in Link Assembly PN KRV20241, PN KRV20780

1шт.

4

KRV10930

BUSHING

, Serial Range: -D0498

2шт.

Parts are Included in Link Assembly PN KRV20241, PN KRV20780

1шт.

4

KRV20280

BUSHING

, Start Serial: D0498

2шт.

Parts are Included in Link Assembly PN KRV20241, PN KRV20780

1шт.

Выбрано товаров: 10
