Запчасти Case CX210D LC (55.425.AT[03]) - VAR - 461871, 461872 - PRESSURE SENSOR, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

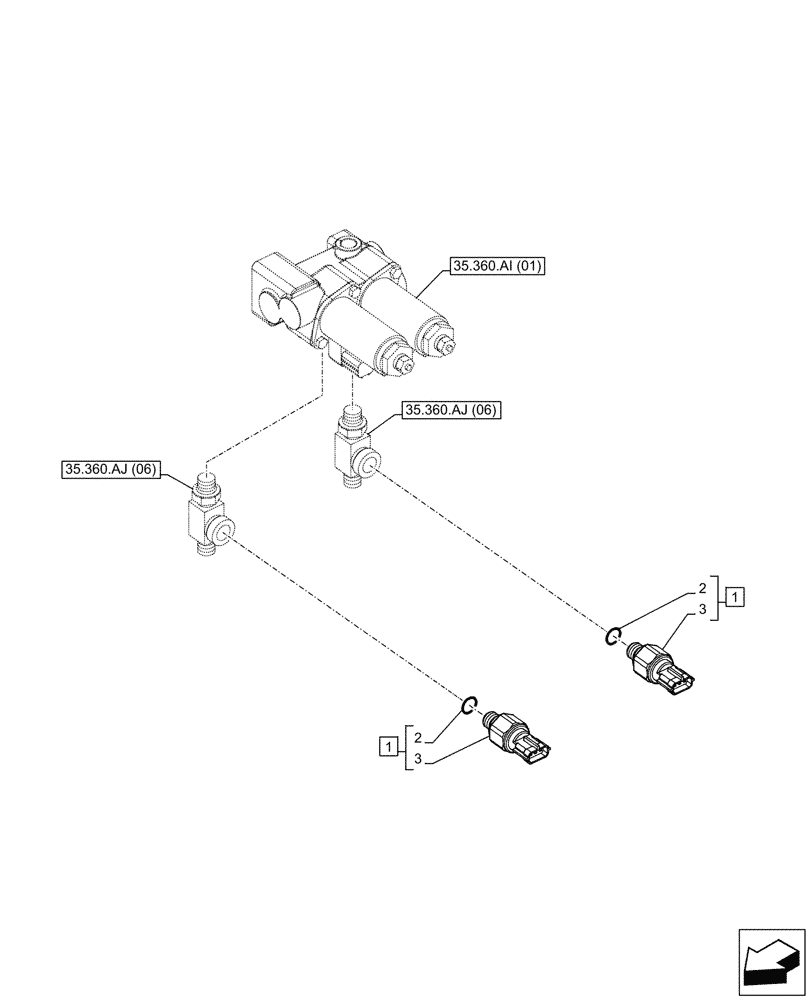

![Схема запчастей Case CX210D LC - (55.425.AT[03]) - VAR - 461871, 461872 - PRESSURE SENSOR, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/5312211.png)
35.360.ai (01)
2
1
3
3
2
35.360.aj (06)
35.360.aj (06)
1
№
Артикул
Название
Примечание
Количество
1
KHR26940
SENSOR
5Mpa x G1/4",ASSY, Incl 2 - 3
2шт.
2
NSS
NOT SOLD SEPARAT
Sensor, Incl in 1
2шт.
3
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
Выбрано товаров: 3
