(55.425.AT[02]) - VAR - 461869 - HAMMER PRESSURE SENSOR, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D LC (55.425.AT[02]) - VAR - 461869 - HAMMER PRESSURE SENSOR, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

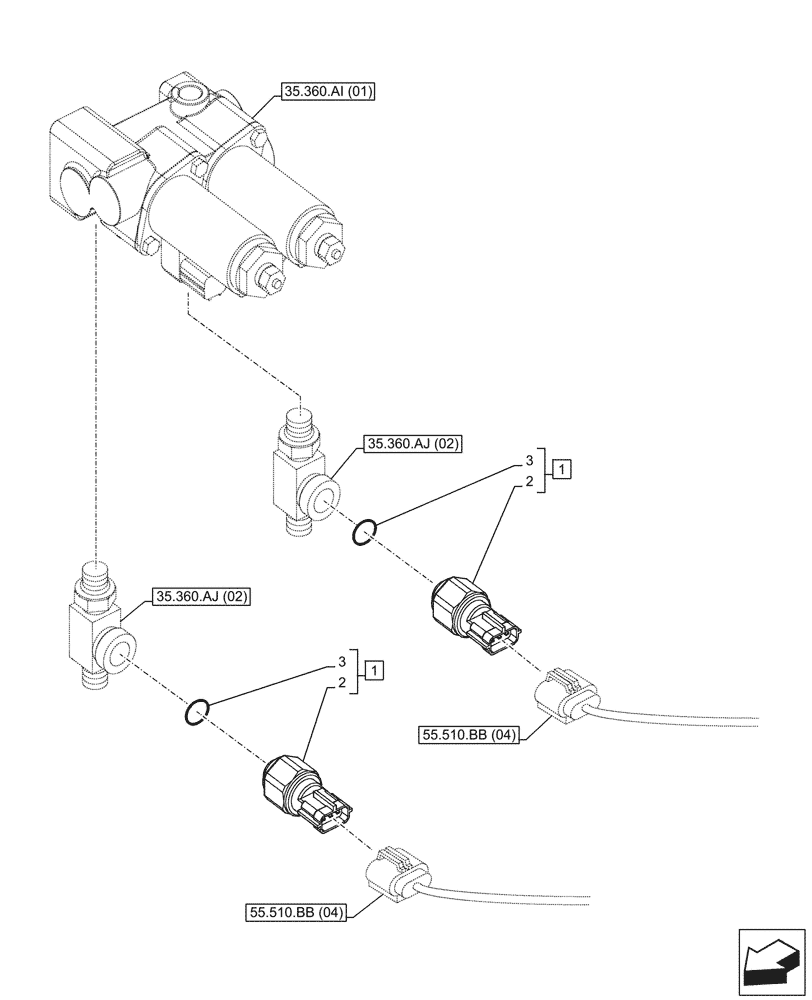

Схема запчастей Case CX210D LC - (55.425.AT[02]) - VAR - 461869 - HAMMER PRESSURE SENSOR, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
3
55.510.bb (04)
1
55.510.bb (04)
2
3
1
35.360.aj (02)
2
35.360.aj (02)
35.360.ai (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR26940

SENSOR

5Mpa x G1/4", ASSY, Incl 2 - 3

2шт.

2

NSS

NOT SOLD SEPARAT

Pressure Sensor Fitting, Incl in 1

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

Выбрано товаров: 3
