(55.100.AI[01]) - MAIN, WIRE HARNESS

Запчасти Case CX210D LC (55.100.AI[01]) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

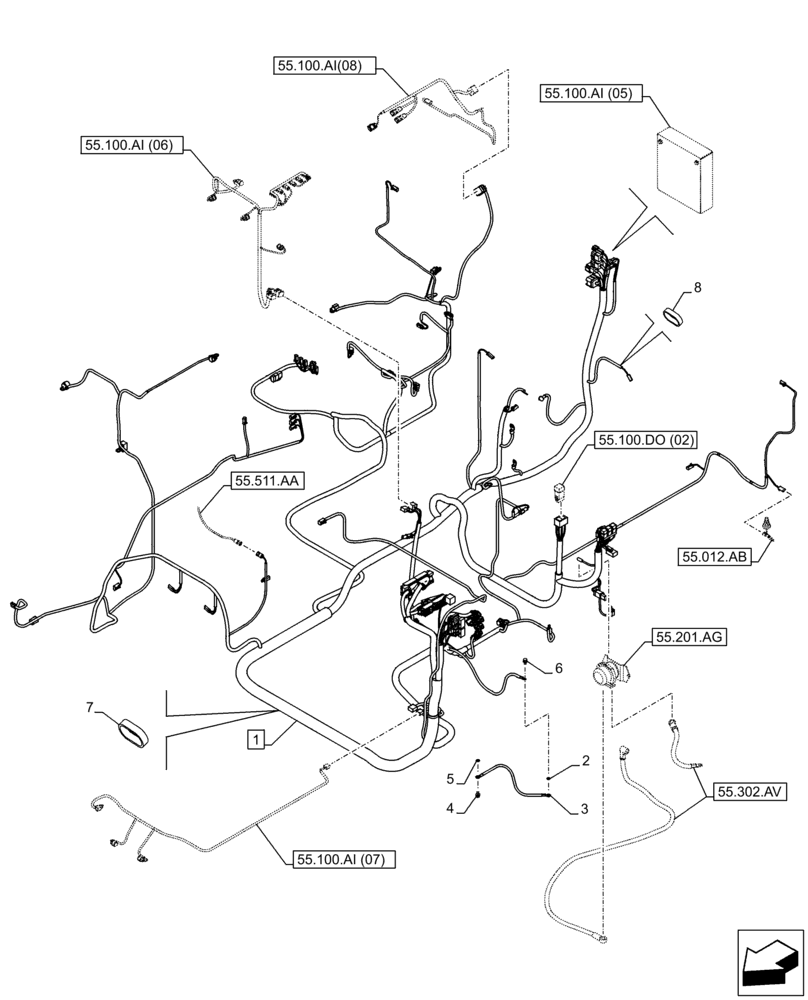

Схема запчастей Case CX210D LC - (55.100.AI[01]) - MAIN, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
1
55.100.do (02)
2
55.511.aa
55.201.ag
6
55.100.ai (07)
55.100.ai (05)
3
55.100.ai(08)
5
7
4
55.302.av
55.012.ab
55.100.ai (06)
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRR21801

WIRE HARNESS

, Serial Range: -C0499

1шт.

1

KRR21802

WIRE HARNESS

ASSY, Serial Range: D0499-C0500

1шт.

See also Figure 55.100.DO (02)

1шт.

1

KRR21803

WIRE HARNESS

ASSY, Start Serial: D0500

1шт.

See also Figure 55.100.DO (02)

1шт.

2

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

3

KHR28730

GROUND CABLE

1шт.

4

167518A1

BOLT

1шт.

5

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

6

KHR2309

BOLT,Spcl

M8 x 30mm

1шт.

7

150071A1

MOUNTING CLIP

2шт.

8

150496A1

MOUNTING CLIP

3шт.
