(55.036.AB[03]) - VAR - 461561, 461583, 461865, 461867, 461869, 461870 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT, SHEARS, HIGH FLOW

Запчасти Case CX210D LC (55.036.AB[03]) - VAR - 461561, 461583, 461865, 461867, 461869, 461870 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT, SHEARS, HIGH FLOW (55) - ELECTRICAL SYSTEMS

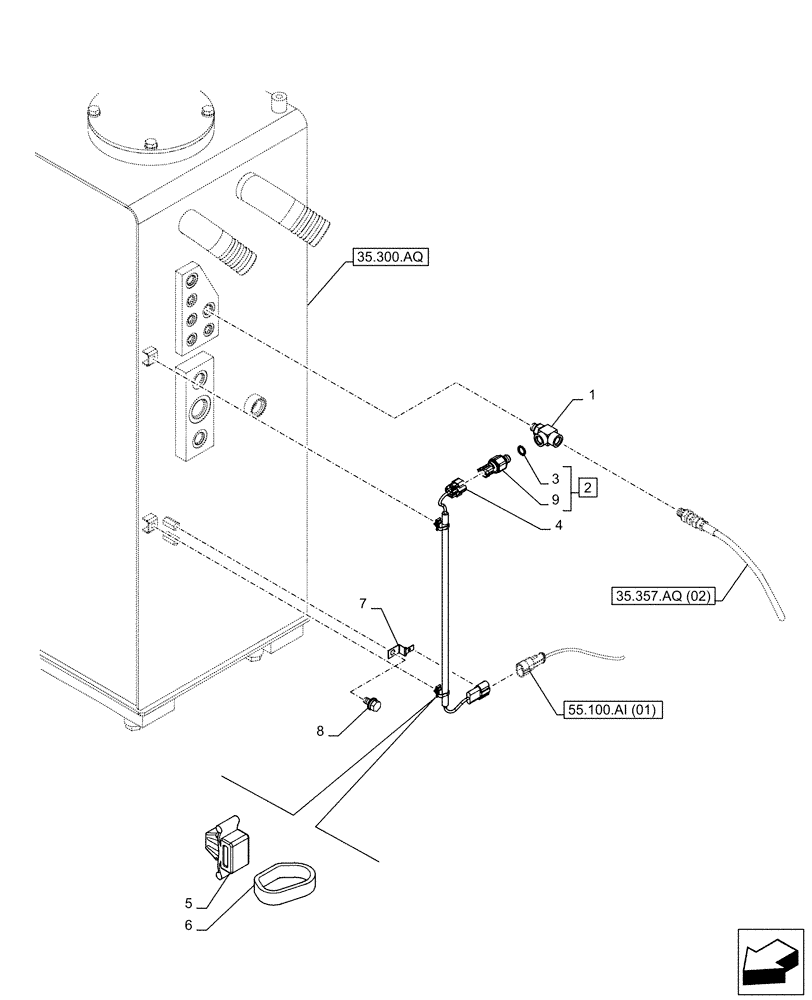

Схема запчастей Case CX210D LC - (55.036.AB[03]) - VAR - 461561, 461583, 461865, 461867, 461869, 461870 - HYDRAULIC, FLUID, PRESSURE SWITCH, HAMMER CIRCUIT, SHEARS, HIGH FLOW (55) - ELECTRICAL SYSTEMS
35.357.aq (02)
3
5
4
1
6
2
9
7
8
55.100.ai (01)
35.300.aq
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ12530

TEE

G1/4"

1шт.

2

KHR32870

SENSOR

ASSY, Incl 3, 9

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

KHR33420

WIRE HARNESS

1шт.

5

KHR10220

MOUNTING CLIP

2шт.

6

150496A1

MOUNTING CLIP

2шт.

7

158962A1

CLIP

1шт.

8

167518A1

BOLT

1шт.

9

NSS

NOT SOLD SEPARAT

Pressure Sensor, Incl in 2

1шт.

Выбрано товаров: 9
