(48.100.AD[01]) - VAR - 956000 - TRACK CHAIN (L=700MM)

Запчасти Case CX210D LC (48.100.AD[01]) - VAR - 956000 - TRACK CHAIN (L=700MM) (48) - TRACKS & TRACK SUSPENSION

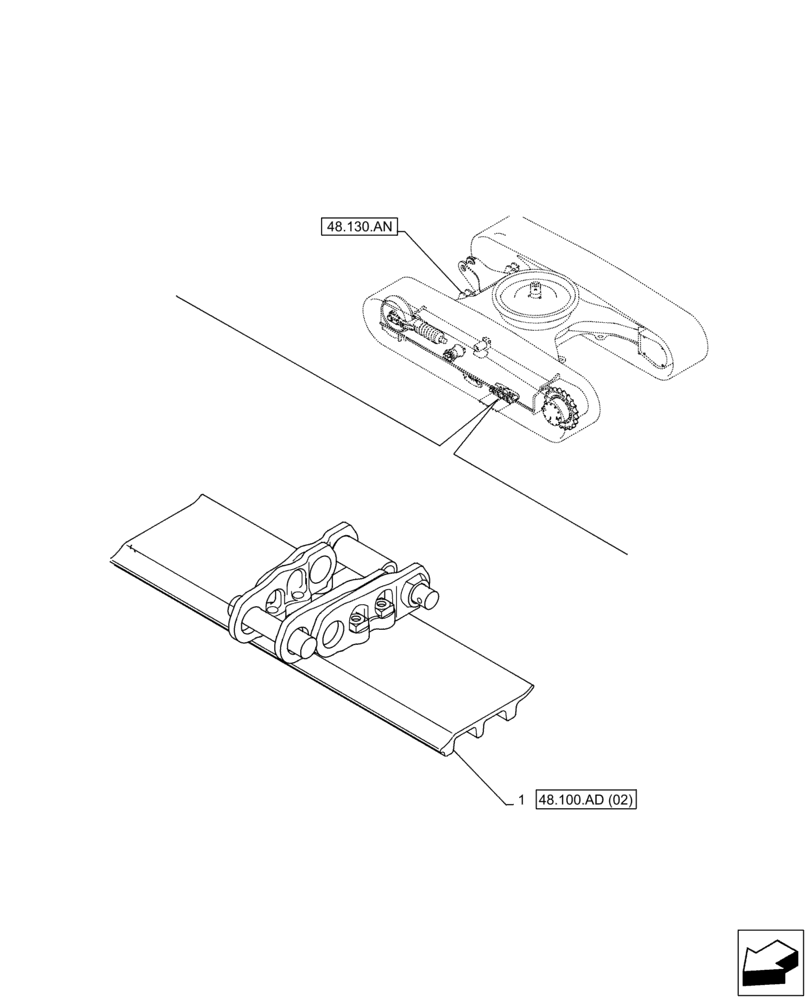

Схема запчастей Case CX210D LC - (48.100.AD[01]) - VAR - 956000 - TRACK CHAIN (L=700MM) (48) - TRACKS & TRACK SUSPENSION
48.100.ad (02)
1
48.130.an
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRA1798

SHOE

ASSY, (700mm), Serial Range: -C0426

2шт.

See also Figure 48.100.AD(02)

1шт.

1

KRA11380

TRACK ASSY

ASSY, (700mm), Start Serial: D0426

2шт.

See also Figure 48.100.AD(02)

1шт.
