(35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES

Запчасти Case CX210D LC (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

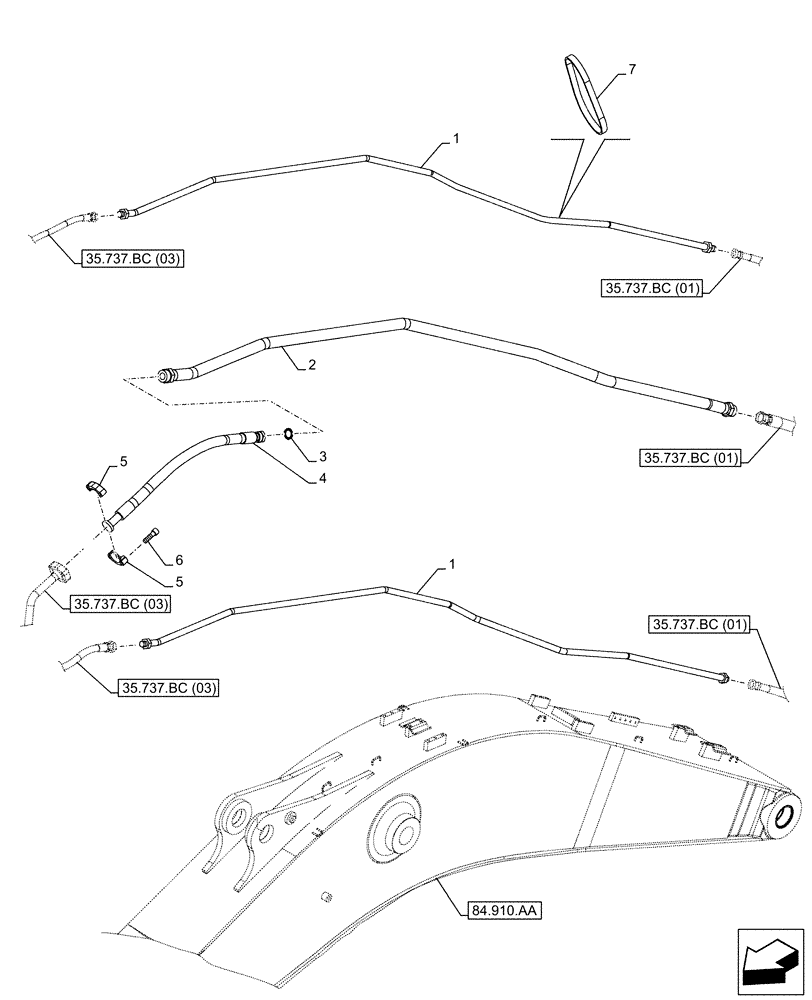

Схема запчастей Case CX210D LC - (35.737.BC[02]) - VAR - 481064 - ARM, CYLINDER, SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
84.910.aa
6
1
1
3
7
4
5
5
2
35.737.bc (03)
35.737.bc (03)
35.737.bc (03)
35.737.bc (01)
35.737.bc (01)
35.737.bc (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV32750

PIPE

2шт.

2

KRV37780

TUBE

1шт.

3

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

4

KRV40200

HYDRAULIC HOSE

25mm ID x 1000mm

1шт.

5

150561A1

FLANGE

2шт.

6

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

M12 x 40mm

4шт.

7

150067A1

MOUNTING CLIP

150mm

6шт.

Выбрано товаров: 7
