(35.737.BC[01]) - VAR - 481064 - ARM, LIFT CYLINDER, SAFETY VALVE, LINE

Запчасти Case CX210D LC (35.737.BC[01]) - VAR - 481064 - ARM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

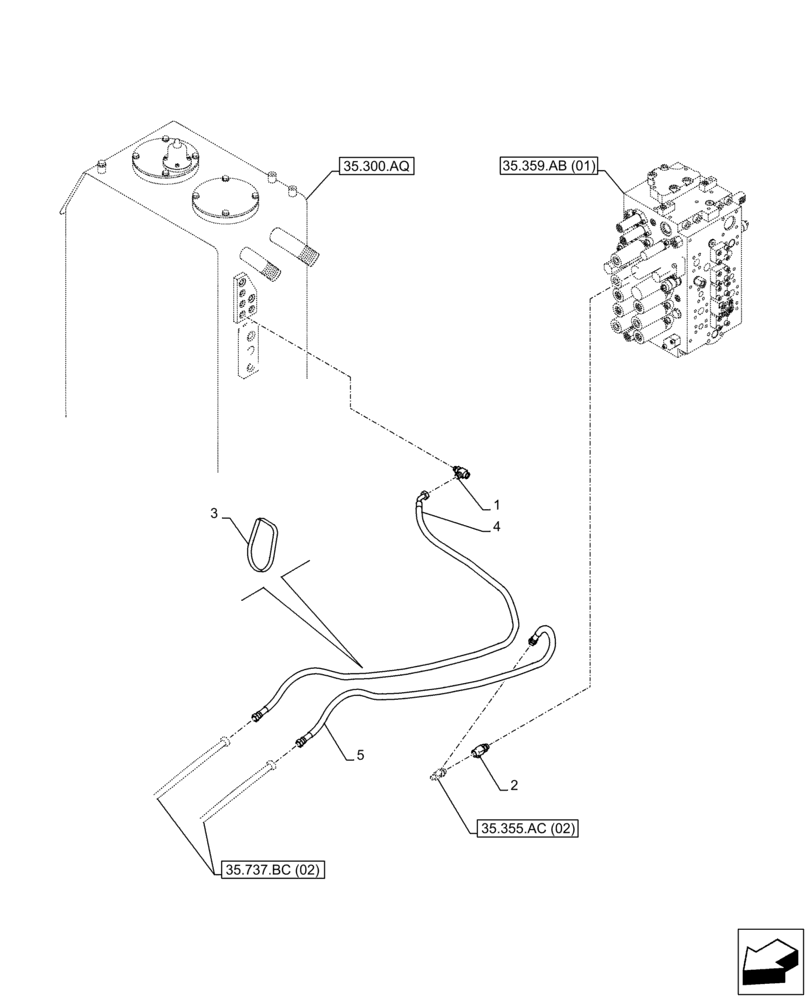

Схема запчастей Case CX210D LC - (35.737.BC[01]) - VAR - 481064 - ARM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
35.359.ab (01)
1
5
35.300.aq
4
2
3
35.355.ac (02)
35.737.bc (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ11560

TEE

G1/4" x G3/8" X G1/4"

1шт.

2

KHJ31880

TEE

G3/8"

1шт.

3

150496A1

MOUNTING CLIP

250mm

8шт.

4

KHJ30750

HYDRAULIC HOSE

9mm ID x 1900mm

1шт.

5

KHJ18350

HYDRAULIC HOSE

1350mm

1шт.

Выбрано товаров: 5
