(35.737.AE[03]) - VAR - 481064 - ARM, CYLINDER, LINE, SAFETY VALVE

Запчасти Case CX210D LC (35.737.AE[03]) - VAR - 481064 - ARM, CYLINDER, LINE, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

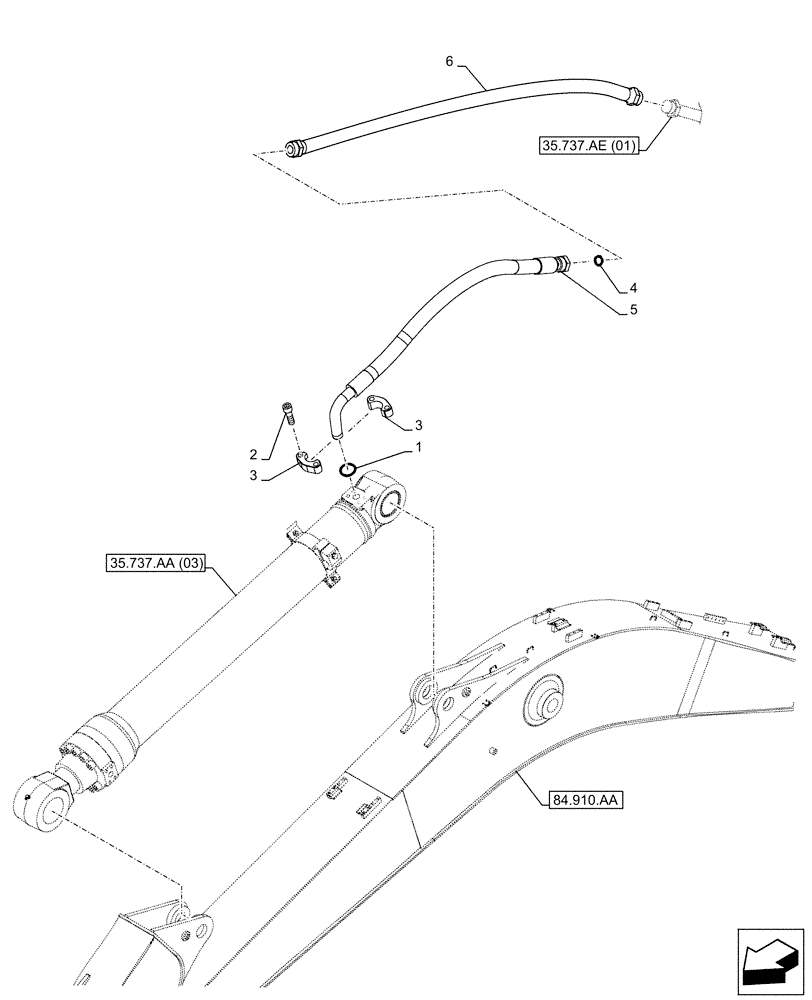

Схема запчастей Case CX210D LC - (35.737.AE[03]) - VAR - 481064 - ARM, CYLINDER, LINE, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
35.737.ae (01)
5
4
3
1
3
2
6
35.737.aa (03)
84.910.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

155211A1

O-RING

1шт.

2

862-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

M12 x 40mm

4шт.

3

150561A1

FLANGE

2шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

5

KRV40210

HYDRAULIC HOSE

25mm ID x 1050mm

1шт.

6

KRV37790

TUBE

1шт.

Выбрано товаров: 6
