Запчасти Case CX210D LC (35.736.AK[02]) - VAR - 461585, 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS

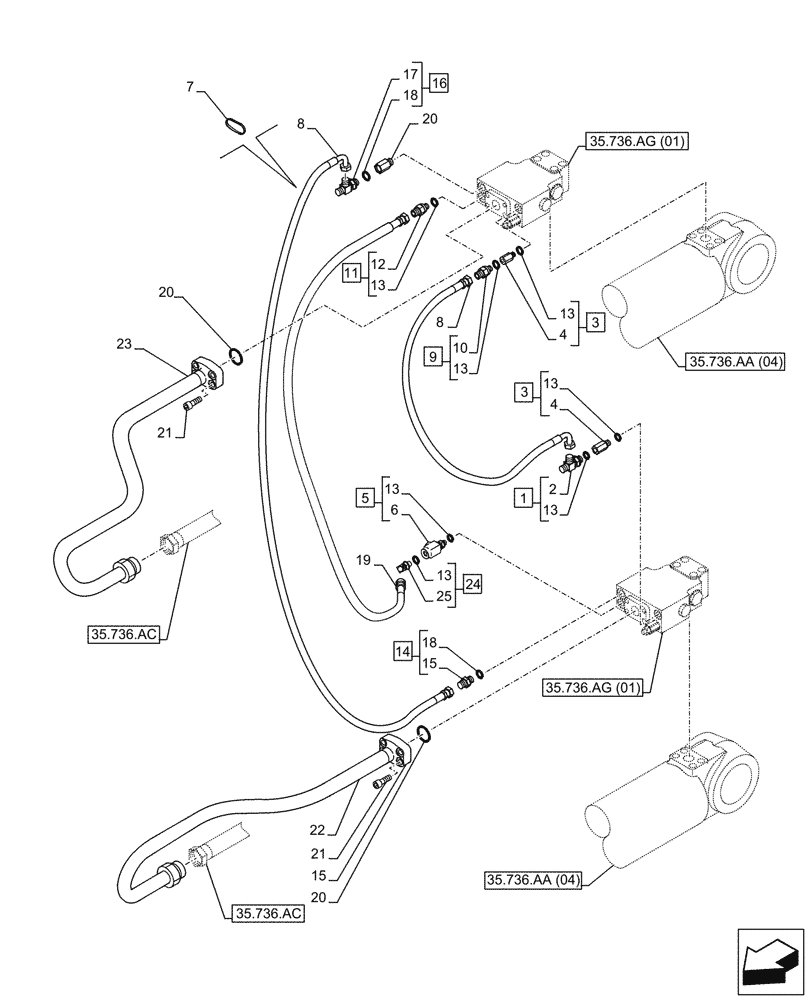

Схема запчастей Case CX210D LC - (35.736.AK[02]) - VAR - 461585, 481064 - BOOM, LIFT CYLINDER, SAFETY VALVE, LINE (35) - HYDRAULIC SYSTEMS
35.736.ac
20
19
24
6
13
4
21
8
10
13
7
23
8
14
20
21
18
25
5
16
2
11
3
9
18
4
22
12
13
15
13
15
13
3
13
13
17
20
1
35.736.aa (04)
35.736.aa (04)
35.736.ag (01)
35.736.ag (01)
35.736.ac

Артикул

Название

Примечание

Количество

1

162827A1

TEE

G1/4" x G3/8" x G3/8", ASSY, Incl 2, 13 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

T-Fitting, incl in 1

1шт.

3

162525A1

STUD

G1/4" x G1/4", ASSY, Incl 4, 13 (Qty 1)

2шт.

4

NSS

NOT SOLD SEPARAT

Fitting, inc in 3

1шт.

5

167666A1

FITTING

G1/4" x G1/4", ASSY, Incl 6, 13 (Qty 1), Serial Range: -C0441

1шт.

5

167689A1

FITTING

G1/4" x G1/4", ASSY, Incl 6, 13 (Qty 1), Serial Range: D0441-C0442

1шт.

5

KHJ36840

TEE

G3/8" x G1/4" x G1/4", Incl 6,13 (Qty 1), Start Serial: D0442

1шт.

6

NSS

NOT SOLD SEPARAT

T-Fitting, incl in 5

1шт.

7

150071A1

MOUNTING CLIP

380mm

1шт.

8

KHJ1435

HYDRAULIC HOSE

9mm ID x 1150mm

2шт.

9

152747A1

ADAPTER

G1/4" x G3/8" x G3/8", ASSY, Incl 10, 13 (Qty 1)

1шт.

10

NSS

NOT SOLD SEPARAT

Fittong, incl in 9

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

G1/4" x G1/4", ASSY, Incl 12, 13 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, incl in 11

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

7шт.

14

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

G3/8" x G3/8", ASSY, Incl 15, 18 (Qty 1)

1шт.

15

NSS

NOT SOLD SEPARAT

Fitting, incl in 14

1шт.

16

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

G3/8" x G3/8", ASSY, Incl 17, 18 (Qty 1)

1шт.

17

NSS

NOT SOLD SEPARAT

T-Fitting, incl in 16

1шт.

18

154475A1

O-RING

2шт.

19

KRV19790

HYDRAULIC HOSE

1150mm

1шт.

20

KHV0373

STUD

G3/8" x G3/8"

1шт.

21

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

M10 x 35mm

8шт.

22

KRV12070

HYD TUBE

1шт.

23

KRV12080

HYD TUBE

1шт.

24

KHJ1222

ELBOW

, Serial Range: D0441-C0442

1шт.

24

150933A1

ELBOW

G1/4" x G1/4", Assy Incl 13, 24, Start Serial: D0442

1шт.

25

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 24

1шт.

Выбрано товаров: 28
