(35.734.AD[07]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, ARM (L=2.9M) - ASN NFS7H1193

Запчасти Case CX210D LC (35.734.AD[07]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, ARM (L=2.9M) - ASN NFS7H1193 (35) - HYDRAULIC SYSTEMS

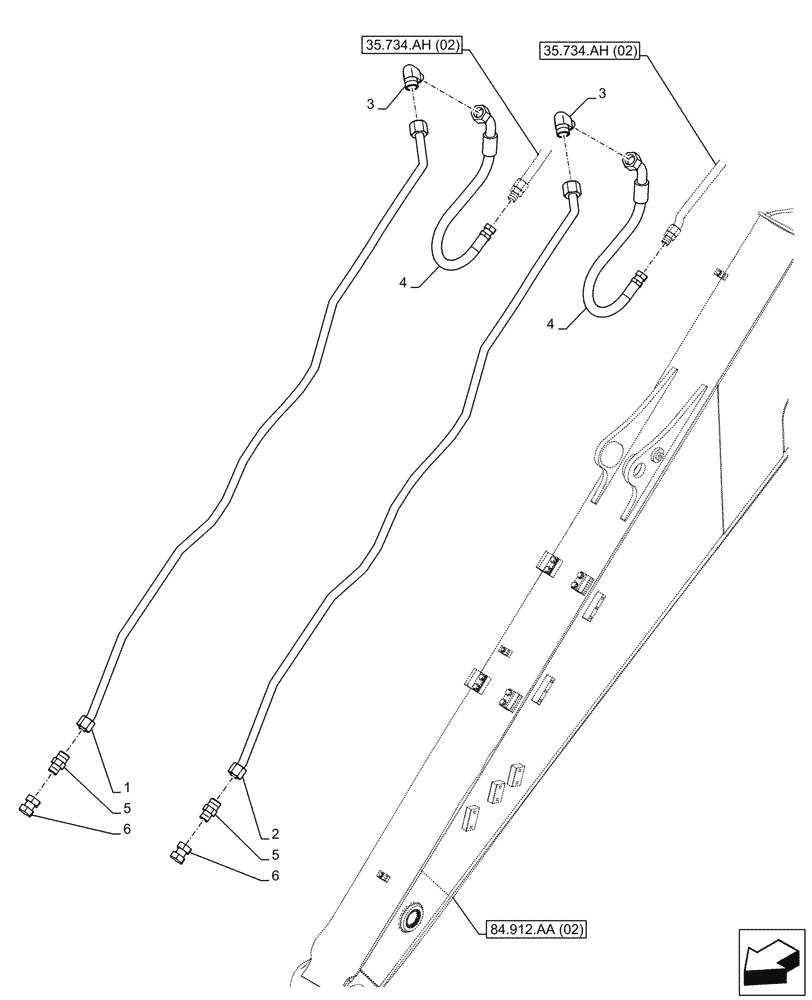

Схема запчастей Case CX210D LC - (35.734.AD[07]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, ARM (L=2.9M) - ASN NFS7H1193 (35) - HYDRAULIC SYSTEMS
35.734.ah (02)
4
4
2
6
3
5
1
3
5
84.912.aa (02)
6
35.734.ah (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV44310

PIPE

RH

1шт.

2

KRV44300

PIPE

LH

1шт.

3

KMJ0766

ELBOW

2шт.

4

KHV13830

HYDRAULIC HOSE

6mm ID x 840mm, from Safety Valve

2шт.

5

163065A1

UNION

2шт.

6

158842A1

PLUG

G1/4"

2шт.

Выбрано товаров: 6
