(35.734.AD[05]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, (ARM L=2.4M) - BSN NFS7H1192

Запчасти Case CX210D LC (35.734.AD[05]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, (ARM L=2.4M) - BSN NFS7H1192 (35) - HYDRAULIC SYSTEMS

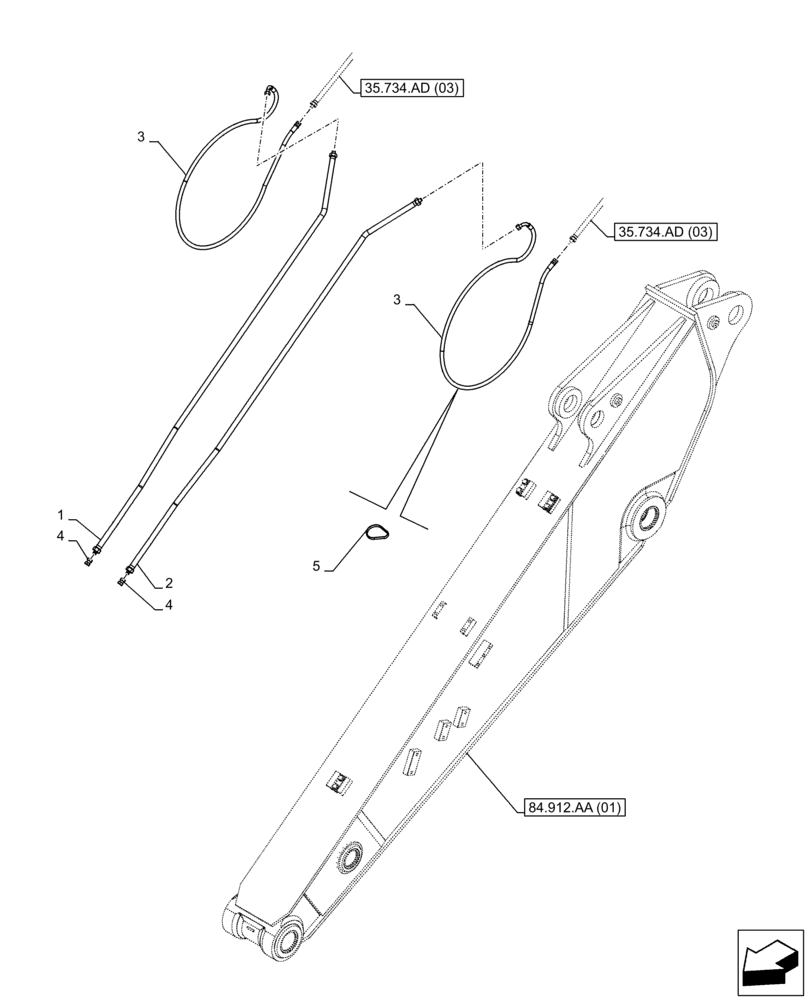

Схема запчастей Case CX210D LC - (35.734.AD[05]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, (ARM L=2.4M) - BSN NFS7H1192 (35) - HYDRAULIC SYSTEMS
84.912.aa (01)
35.734.ad (03)
1
4
35.734.ad (03)
2
3
4
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV42300

PIPE

1шт.

2

KRV42290

PIPE

1шт.

3

KHJ33600

HYDRAULIC HOSE

6mm ID x 1850mm

2шт.

4

158842A1

PLUG

G1/4"

2шт.

5

150496A1

MOUNTING CLIP

250mm

6шт.

Выбрано товаров: 5
