(35.734.AD[04]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, (ARM L=2.9M) - BSN NFS7H1192

Запчасти Case CX210D LC (35.734.AD[04]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, (ARM L=2.9M) - BSN NFS7H1192 (35) - HYDRAULIC SYSTEMS

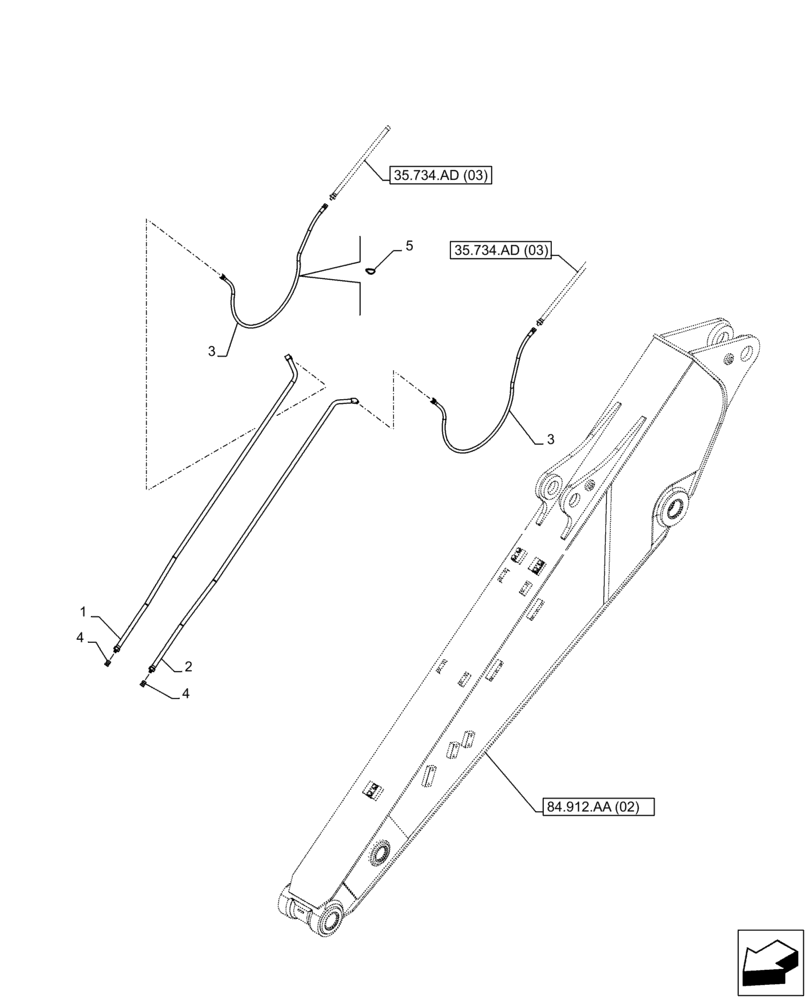

Схема запчастей Case CX210D LC - (35.734.AD[04]) - VAR - 781128 - QUICK COUPLER, HYDRAULIC LINE, (ARM L=2.9M) - BSN NFS7H1192 (35) - HYDRAULIC SYSTEMS
2
4
5
4
35.734.ad (03)
84.912.aa (02)
3
1
35.734.ad (03)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV42250

PIPE

1шт.

2

KRV42240

PIPE

1шт.

3

KHV13430

HOSE

6mm ID x 1550mm

2шт.

4

158842A1

PLUG

G1/4"

2шт.

5

150496A1

MOUNTING CLIP

250mm

6шт.
