Запчасти Case CX210D LC (35.734.AD[02]) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

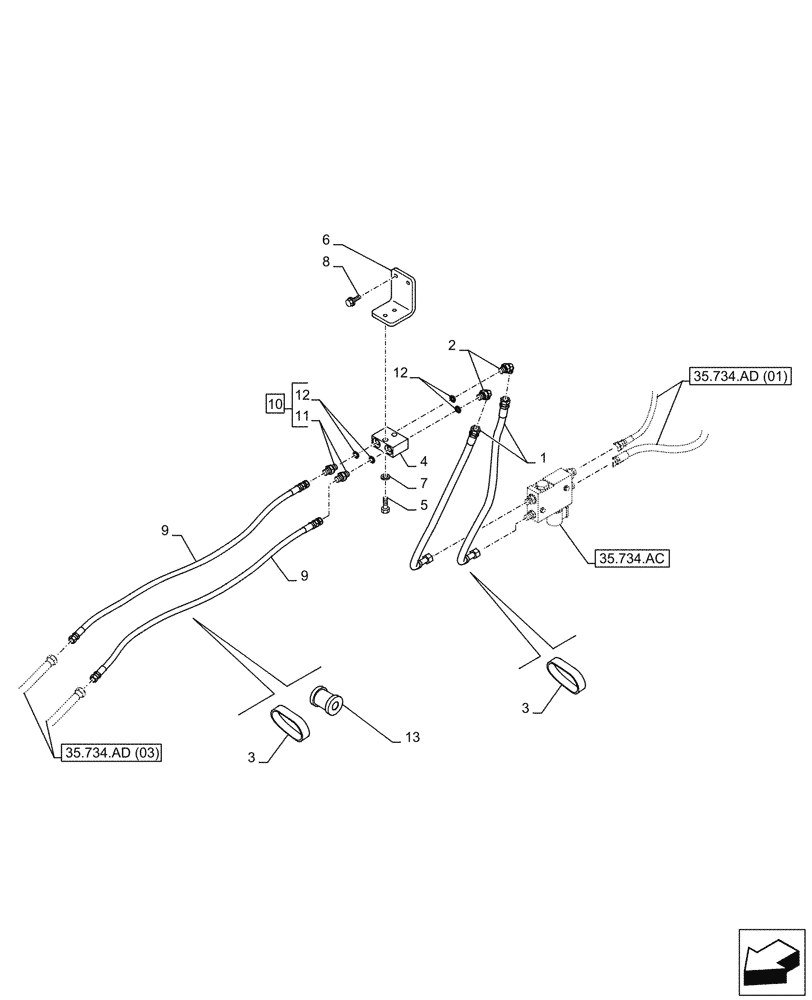

Схема запчастей Case CX210D LC - (35.734.AD[02]) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS
35.734.ad (01)
10
4
5
12
9
9
12
2
13
3
8
7
1
6
11
3
35.734.ad (03)
35.734.ac

Артикул

Название

Примечание

Количество

1

KHJ34020

HOSE

06mm ID x 550mm

2шт.

2

KHJ28580

ELBOW

G1/4" x G1/4"

2шт.

3

150071A1

MOUNTING CLIP

380mm

3шт.

4

KRJ37190

MANIFOLD

1шт.

5

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

6

KRJ37200

BRACKET

1шт.

7

150409A1

WASHER

M10

2шт.

8

166052A1

BOLT

M10 x 25mm

2шт.

9

KHJ33340

HOSE

06mm ID x 950mm

2шт.

10

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 11 - 12

2шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

2шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

13

KHJ2679

HOSE CLAMP

, Start Serial: D0546

1шт.

Выбрано товаров: 13
