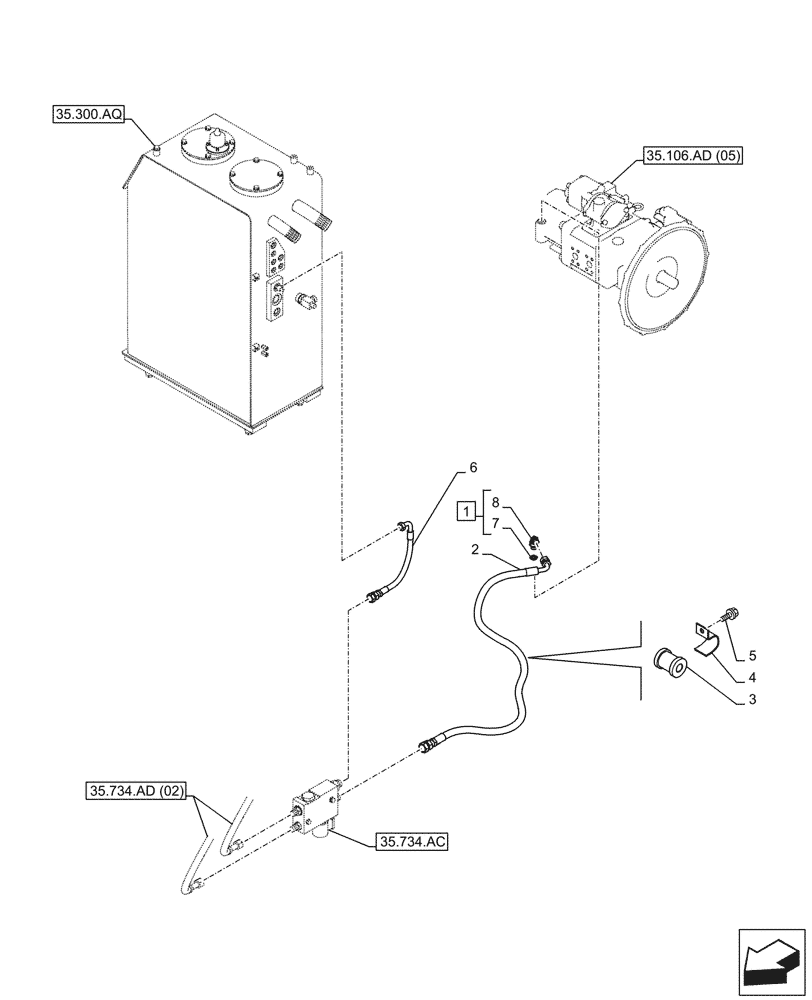

Запчасти Case CX210D LC (35.734.AD[01]) - VAR - 781128 - QUICK COUPLER, SOLENOID VALVE, HYDRAULIC LINE (35) - HYDRAULIC SYSTEMS

1

KHJ28590

ELBOW

G3/8" X G3/8", Serial Range: -C0544

1шт.

1

KHJ28710

ELBOW

ASSY, G3/4" X G3/8", Incl 7 - 8, Start Serial: D0544

1шт.

2

KWJ11020

HYDRAULIC HOSE,9.52 mm ID x 1200.00 mm

09mm ID x 1200mm

1шт.

3

KHJ33450

HOSE CLAMP

1шт.

4

KHJ2025

CLAMP

1шт.

5

166351A1

BOLT,Sems, M10 x 20mm

1шт.

6

KHJ1388

HYDRAULIC HOSE,9.52 mm ID x 320.00 mm

9mm ID x 320mm

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.
