Запчасти Case CX210D LC (35.360.AM[03]) - VAR - 461863, 461864 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.4M) (35) - HYDRAULIC SYSTEMS

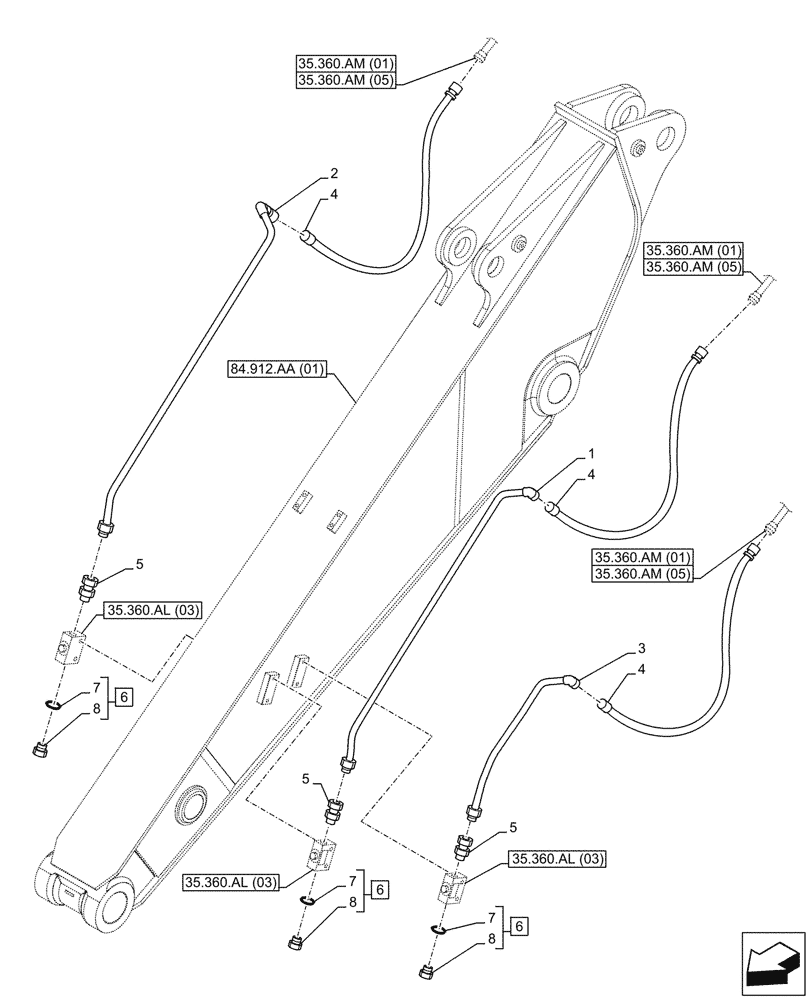

![Схема запчастей Case CX210D LC - (35.360.AM[03]) - VAR - 461863, 461864 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.4M) (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5313475.png)
84.912.aa (01)
7
6
5
4
8
6
8
5
4
1
8
2
4
6
5
7
3
7
35.360.al (03)
35.360.al (03)
35.360.al (03)
35.360.am (05)
35.360.am (05)
35.360.am (05)
35.360.am (01)
35.360.am (01)
35.360.am (01)
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KRV33180
PIPE
from Control Valve to Stop Valve
1шт.
2
KRV33200
PIPE
from Control Valve to Stop Valve
1шт.
3
KRV33190
PIPE
from Control Valve to Stop Valve
1шт.
4
KAV1558
HYDRAULIC HOSE
1600mm, from Control Valve to Stop Valve
3шт.
5
KHJ1939
FITTING
G1/2"
3шт.
6
159085A1
PLUG
ASSY, Incl 7, 8
3шт.
7
150539A1
O-RING
3шт.
8
NSS
NOT SOLD SEPARAT
Plug, Incl in 6
3шт.
