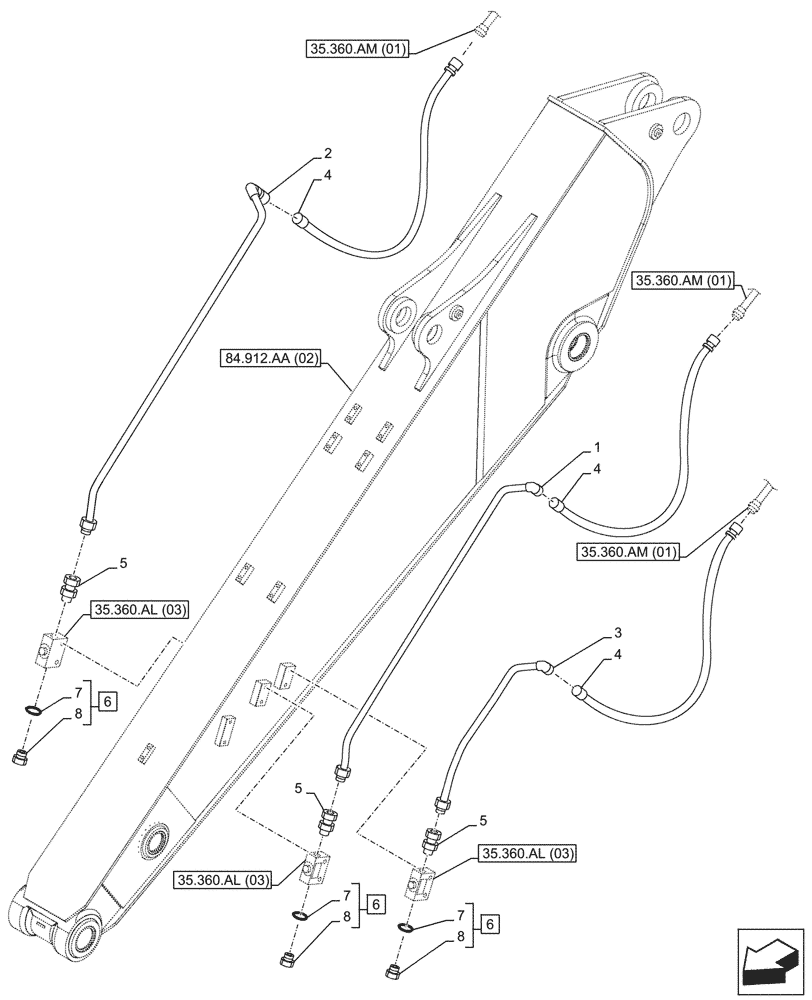

Запчасти Case CX210D LC (35.360.AM[02]) - VAR - 461863, 461864 - ARM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (ARM L=2.9M) (35) - HYDRAULIC SYSTEMS

1

KRV23260

HYD TUBE,16.1 mm ID x 21.7 mm OD

from Control Valve to Stop Valve

1шт.

2

KRV23270

HYD TUBE,16.1 mm ID x 21.7 mm OD

from Control Valve to Stop Valve

1шт.

3

KRV23280

HYD TUBE,16.1 mm ID x 21.7 mm OD

from Control Valve to Stop Valve

1шт.

4

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

12mm ID x 1500mm, from Control Valve to Stop Valve

3шт.

5

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

6

159085A1

PLUG

ASSY, Incl 7, 8

3шт.

7

150539A1

O-RING

3шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

3шт.
