(35.360.AM[01]) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D LC (35.360.AM[01]) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

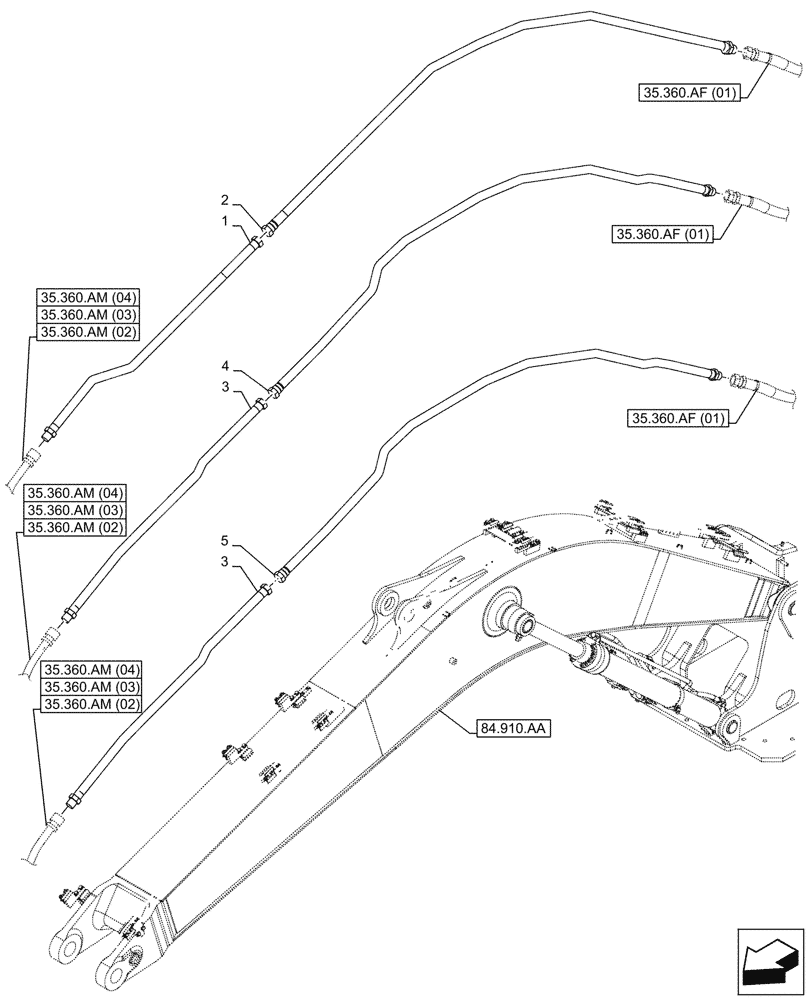

Схема запчастей Case CX210D LC - (35.360.AM[01]) - VAR - 461863 - BOOM, LINE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
84.910.aa
5
1
3
3
2
4
35.360.af (01)
35.360.af (01)
35.360.af (01)
35.360.am (04)
35.360.am (04)
35.360.am (04)
35.360.am (03)
35.360.am (03)
35.360.am (03)
35.360.am (02)
35.360.am (02)
35.360.am (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV40180

PIPE

2шт.

2

KRV42280

PIPE

1шт.

3

KRV40190

PIPE

1шт.

4

KRV32710

PIPE

1шт.

5

KRV32720

PIPE

1шт.

Выбрано товаров: 5
