(35.360.AK[05]) - VAR - 461561, 461865, 461869, 461871 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW

Запчасти Case CX210D LC (35.360.AK[05]) - VAR - 461561, 461865, 461869, 461871 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS

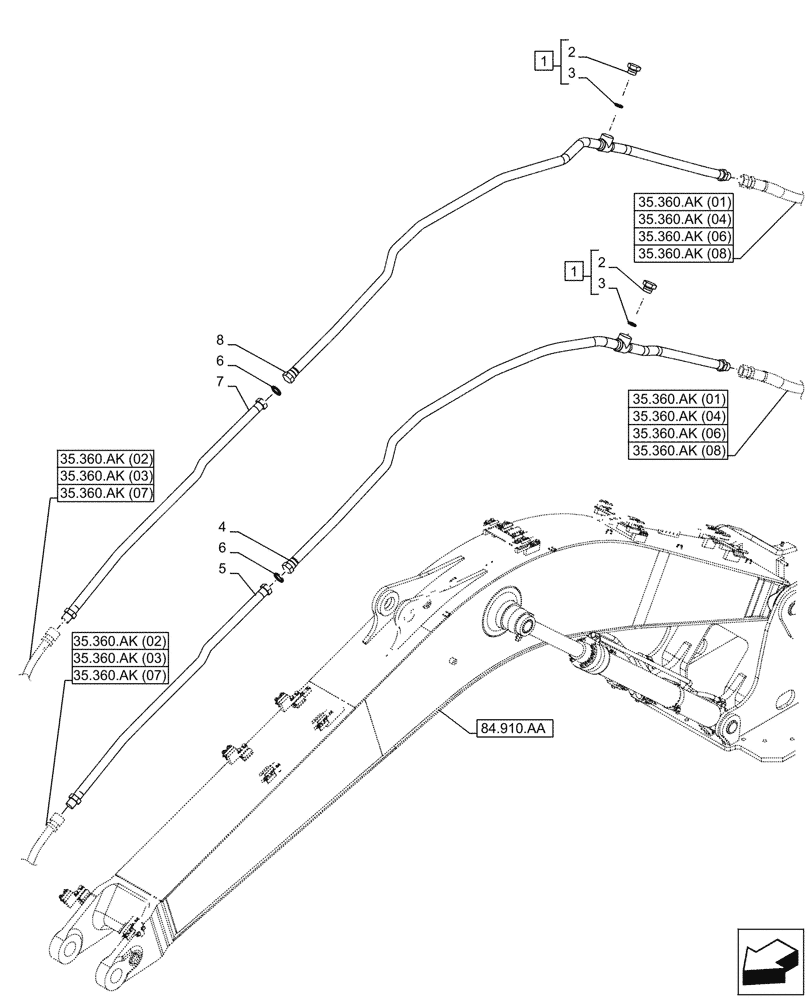

Схема запчастей Case CX210D LC - (35.360.AK[05]) - VAR - 461561, 461865, 461869, 461871 - BOOM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS
35.360.ak (02)
6
35.360.ak (07)
4
84.910.aa
6
35.360.ak (01)
35.360.ak (04)
3
1
35.360.ak (06)
35.360.ak (03)
35.360.ak (02)
2
35.360.ak (01)
2
35.360.ak (07)
35.360.ak (08)
35.360.ak (06)
7
3
8
5
1
35.360.ak (03)
35.360.ak (04)
35.360.ak (08)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152924A1

PLUG

ASSY, G3/4", Incl 2 - 3

2шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

2шт.

3

154503A1

O-RING

2шт.

4

KRV32661

HYD TUBE

1шт.

5

KRV40160

PIPE

1шт.

6

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

7

KRV40170

PIPE

1шт.

8

KRV32671

HYD TUBE

1шт.

Выбрано товаров: 8
