(35.360.AK[04]) - VAR - 461869 - BOOM, LINE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D LC (35.360.AK[04]) - VAR - 461869 - BOOM, LINE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

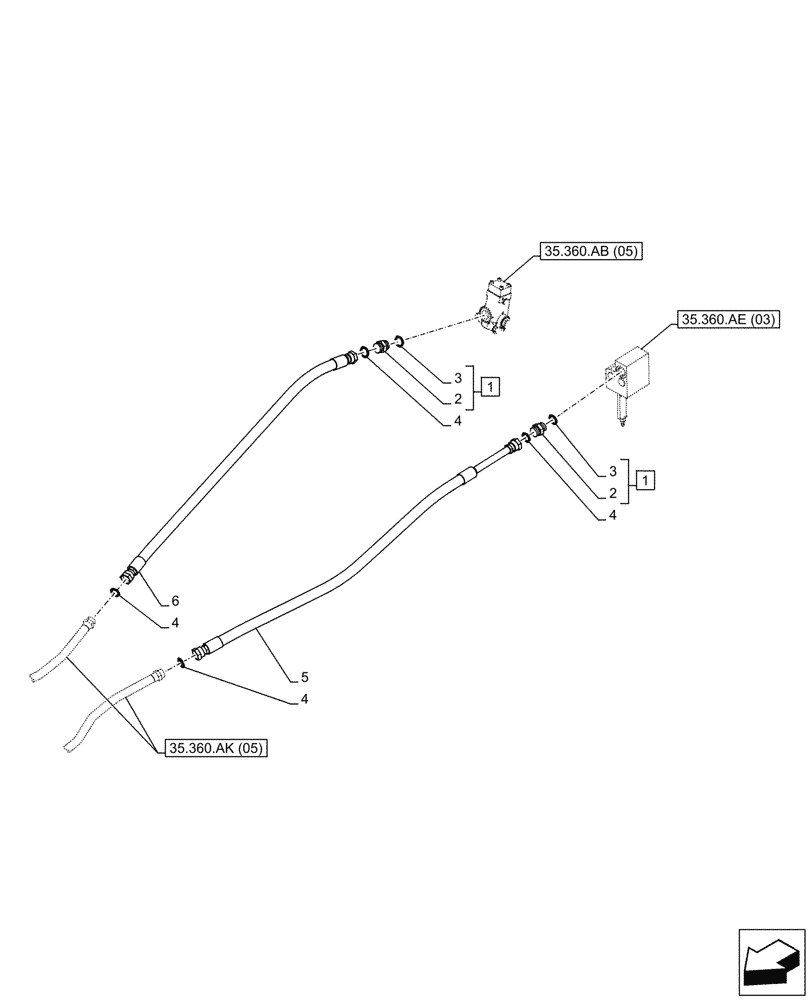

Схема запчастей Case CX210D LC - (35.360.AK[04]) - VAR - 461869 - BOOM, LINE, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.ak (05)
5
4
4
4
6
1
3
4
2
1
2
3
35.360.ab (05)
35.360.ae (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1349

ADAPTER

ASSY, Incl 2 - 3

2шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

2шт.

3

154523A1

O-RING

2шт.

4

KHJ1361

O-RING,0.07" Thk x 0.926" ID

4шт.

5

KRJ29370

HYDRAULIC HOSE

25mm ID x 1580mm

1шт.

6

KSJ13741

HYDRAULIC HOSE

25mm ID x 1390mm

1шт.

Выбрано товаров: 6
