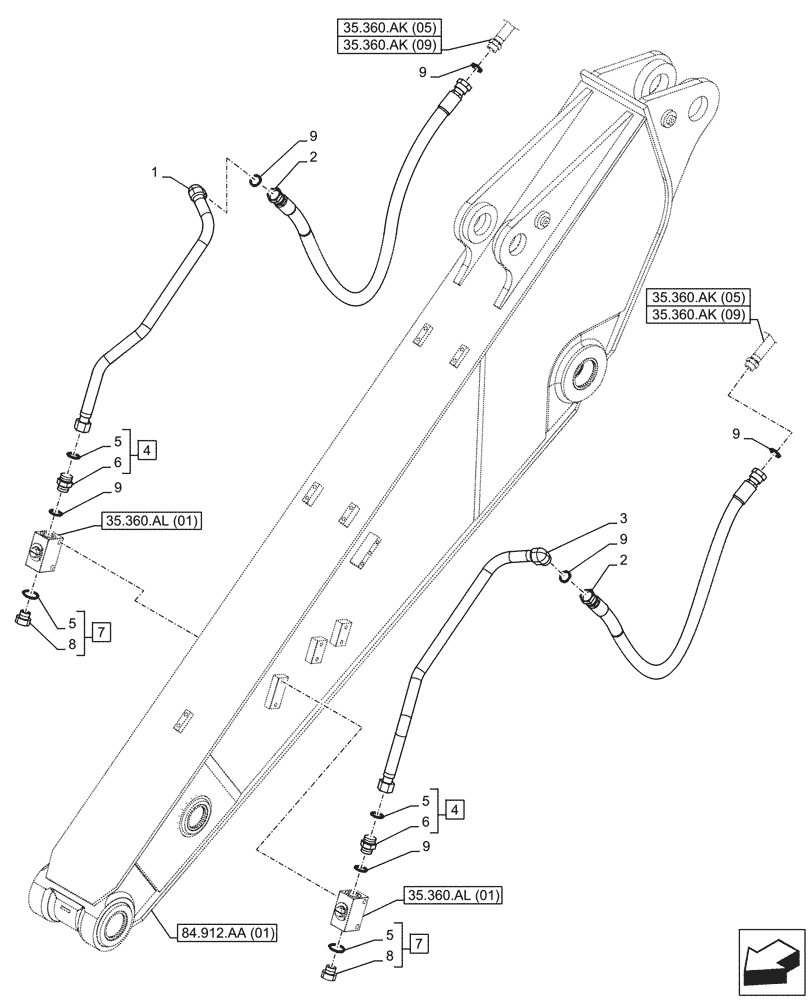

Запчасти Case CX210D LC (35.360.AK[03]) - VAR - 461561, 461583, 461865, 461867, 461869, 461870, 461871 - ARM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (ARM L=2.4M) (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX210D LC - (35.360.AK[03]) - VAR - 461561, 461583, 461865, 461867, 461869, 461870, 461871 - ARM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (ARM L=2.4M) (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5311101.png)
84.912.aa (01)
5
6
7
4
3
8
4
9
6
9
9
2
8
9
5
5
7
5
9
2
1
9
35.360.ak (09)
35.360.ak (09)
35.360.al (01)
35.360.al (01)
35.360.ak (05)
35.360.ak (05)
№
Артикул
Название
Примечание
Количество
1
KRV33170
HYD TUBE
from Manifold to Valve Stop
1шт.
2
KBV23640
HYDRAULIC HOSE
25mm ID x 1600mm, from Manifold to Valve Stop
2шт.
3
KRV33160
PIPE
from Manifold to Valve Stop
1шт.
4
KHJ1349
ADAPTER
ASSY, Incl 5(Qty 1), 6
2шт.
5
152211A1
O-RING
4шт.
6
NSS
NOT SOLD SEPARAT
Fitting, Incl in 4
2шт.
7
162659A1
PLUG
ASSY, Incl 5(Qty 1), 8
2шт.
8
NSS
NOT SOLD SEPARAT
Plug, Incl in 7
2шт.
Выбрано товаров: 9
