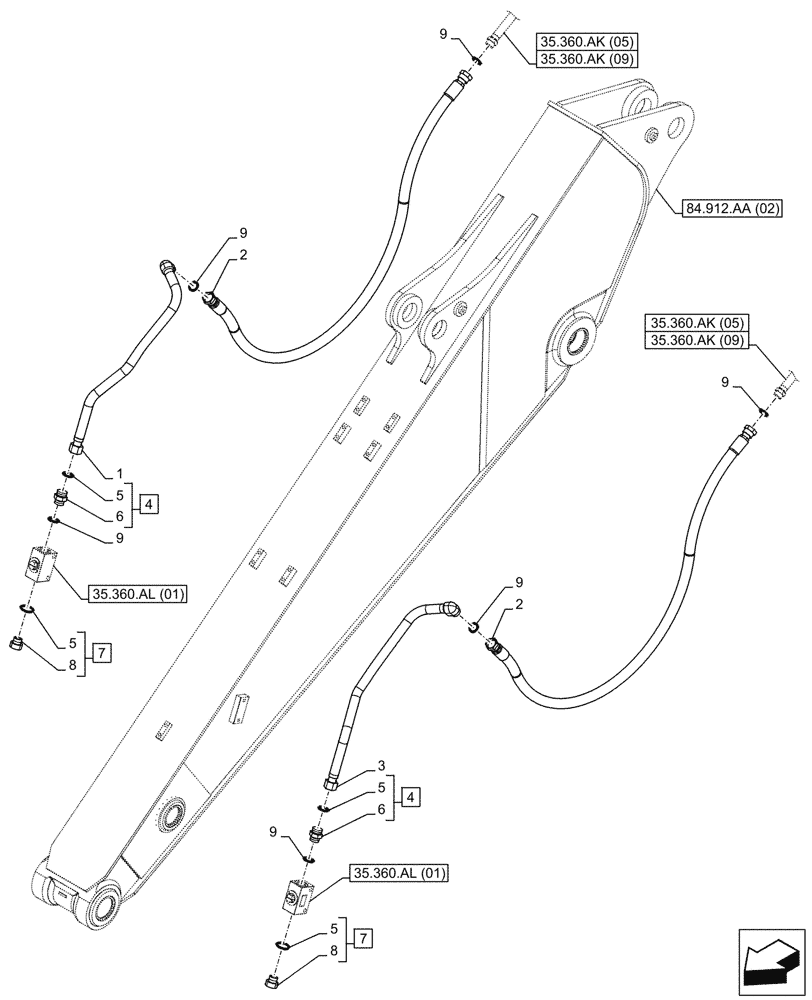

Запчасти Case CX210D LC (35.360.AK[02]) - VAR - 461561, 461583, 461865, 461867, 461869, 461870, 461871 - ARM, LINE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (ARM L=2.9M) (35) - HYDRAULIC SYSTEMS

1

KRV23250

HYD TUBE,26 mm ID x 34 mm OD

from Manifold to Valve Stop

1шт.

2

KRV21920

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

1550mm, from Manifold to Valve Stop

2шт.

3

KRV23240

HYD TUBE,26 mm ID x 34 mm OD

from Manifold to Valve Stop

1шт.

4

KHJ1349

ADAPTER

ASSY, Incl 5(Qty 1), 6

2шт.

5

152211A1

O-RING

4шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

7

162659A1

PLUG

ASSY, Incl 5(Qty 1), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Plug, Incl in 7

2шт.

9

KHJ1361

O-RING,0.07" Thk x 0.926" ID

6шт.
