(35.360.AJ[04]) - VAR - 461869 - HAMMER, SOLENOID VALVE, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D LC (35.360.AJ[04]) - VAR - 461869 - HAMMER, SOLENOID VALVE, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

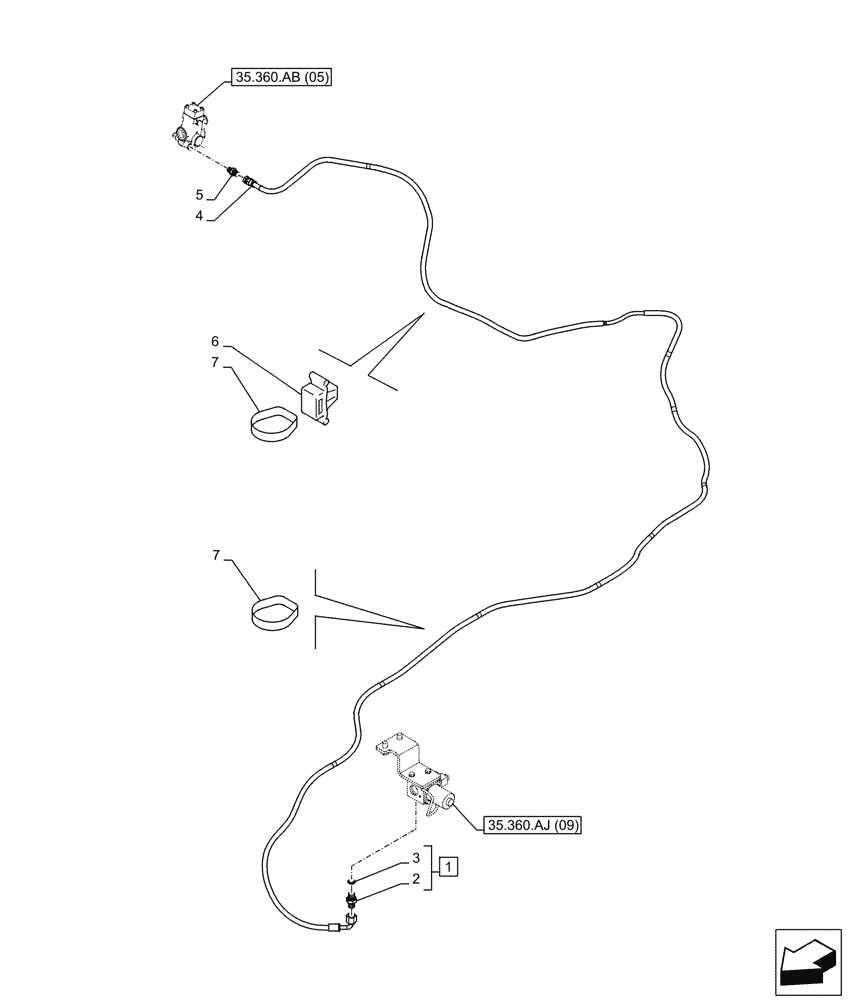

Схема запчастей Case CX210D LC - (35.360.AJ[04]) - VAR - 461869 - HAMMER, SOLENOID VALVE, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
7
2
35.360.aj (09)
7
1
4
6
5
3
35.360.ab (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

G1/4" x G1/4", ASSY, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

KHJ33830

HOSE

1шт.

5

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

6

KHR10220

MOUNTING CLIP

3шт.

7

150496A1

MOUNTING CLIP

250mm

4шт.

Выбрано товаров: 7
