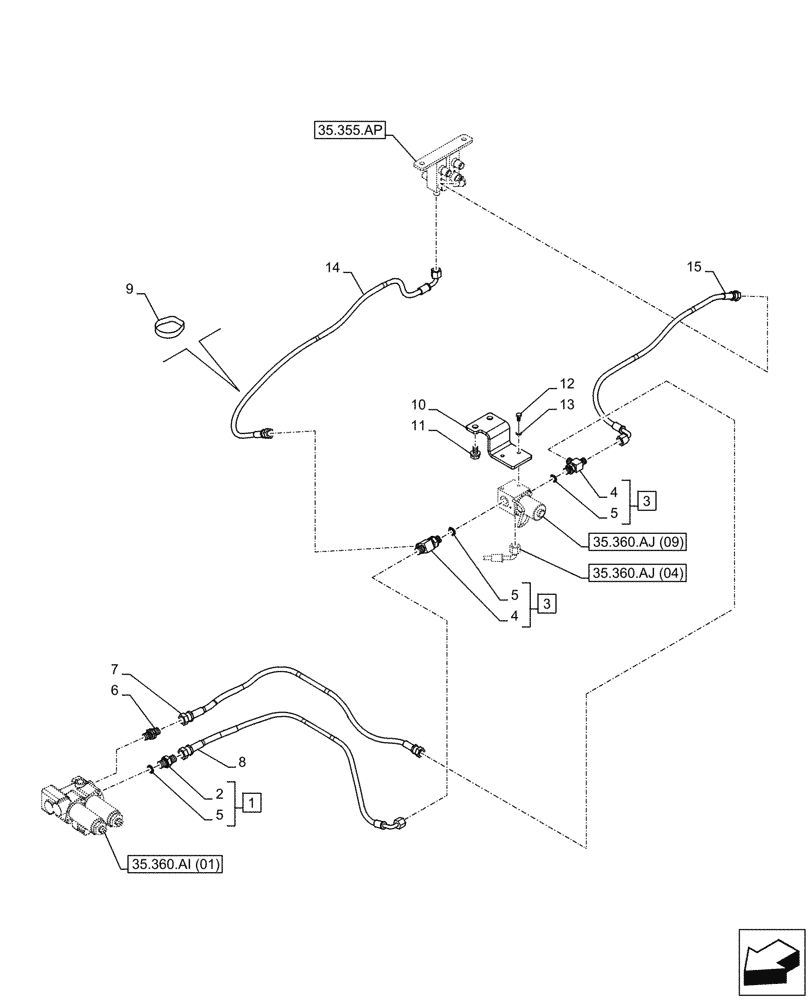

Запчасти Case CX210D LC (35.360.AJ[03]) - VAR - 461869 - HAMMER, SHEARS, SOLENOID VALVE, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 2, 5 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 4, 5 (Qty 2)

2шт.

4

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 3

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

6

161841A1

HYD CONNECTOR

G1/4"

1шт.

7

KHJ2163

HOSE

6mm ID X620mm

1шт.

8

KHJ31500

HOSE

1шт.

9

150496A1

MOUNTING CLIP

250mm

1шт.

10

KHJ30520

BRACKET

1шт.

11

166351A1

BOLT,Sems, M10 x 20mm

2шт.

12

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

, Serial Range: -C0532

1шт.

12

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

, Start Serial: D0532

2шт.

13

183-106VR

SPRING WASHER

2шт.

14

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

6mm ID x 900mm

1шт.

15

KHJ2195

HOSE

6mm ID x 680mm

1шт.
