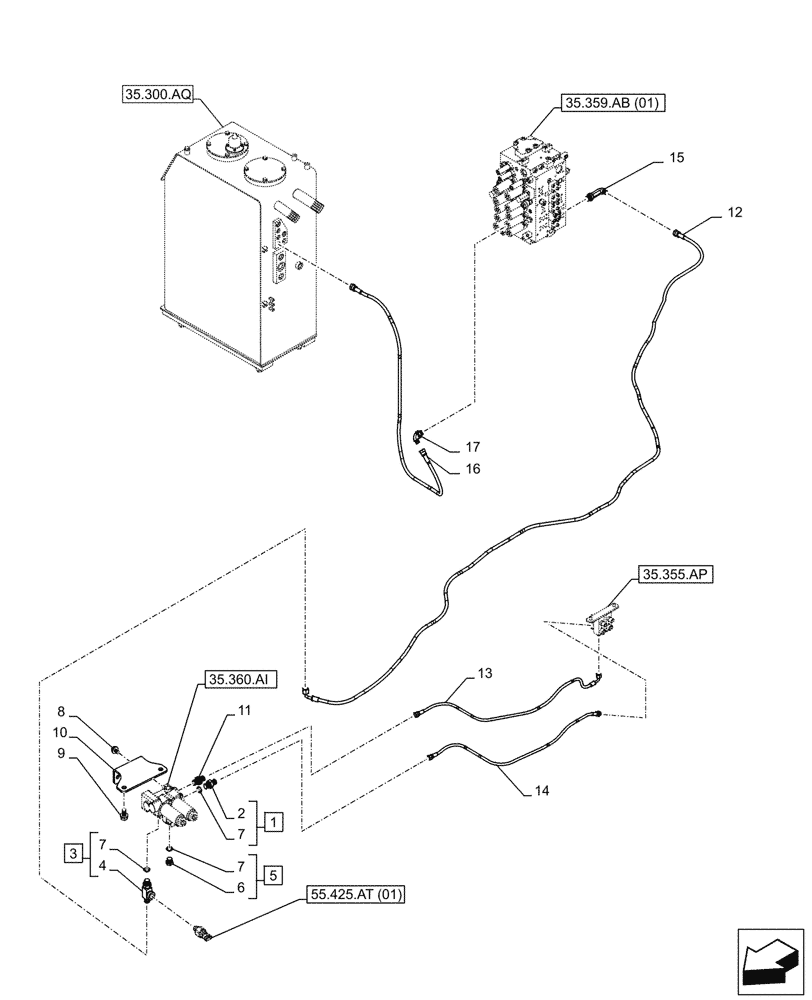

Запчасти Case CX210D LC (35.360.AJ[01]) - VAR - 461865 - HAMMER CIRCUIT, SOLENOID VALVE, LINE, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

G1/4" x G1/4", ASSY, Incl 2, 7 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

167666A1

FITTING

G1/4" x G1/4", ASSY, Incl 4, 7 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 3

1шт.

5

159002A1

PLUG

G1/4" x G1/4", ASSY, Incl 6, 7 (Qty 1)

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 5

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

8

166345A1

BOLT

M8 x 16mm

2шт.

9

166351A1

BOLT,Sems, M10 x 20mm

2шт.

10

KHJ28770

BRACKET

1шт.

11

161841A1

HYD CONNECTOR

G1/4" x G1/4"

1шт.

12

KHJ2581

HOSE,6.3 mm ID x 3100.00 mm

6mm ID x 3100mm

1шт.

13

KHJ2092

HOSE

6mm ID x 1100mm

1шт.

14

KHJ2051

HOSE

6mm ID x 1050mm

1шт.

15

KHJ28880

ELBOW

90° x G3/8" x G1/4"

1шт.

16

KHJ2055

HOSE

6mm ID x 1250mm

1шт.

17

KHJ28690

ELBOW

G3/8" x G1/4"

1шт.
