Запчасти Case CX210D LC (35.360.AG[02]) - VAR - 461863, 461864 - SOLENOID VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

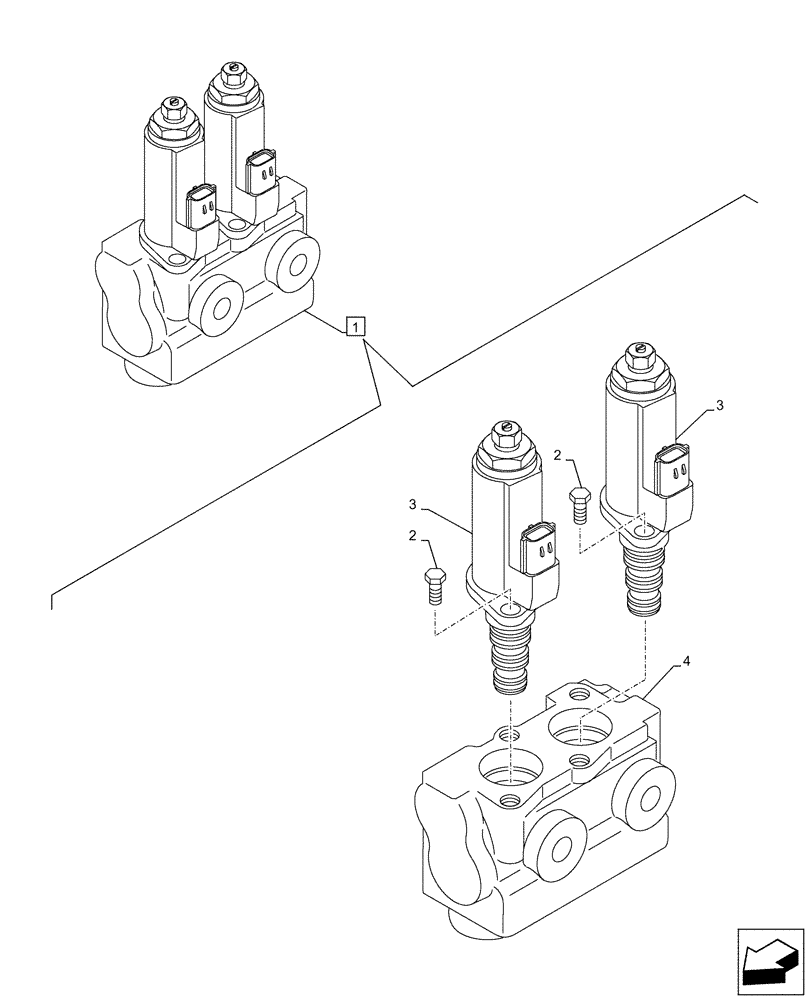

Схема запчастей Case CX210D LC - (35.360.AG[02]) - VAR - 461863, 461864 - SOLENOID VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
3
4
2
3
1
2

Артикул

Название

Примечание

Количество

1

MFJ71500

VALVE SECTION

ASSY, Incl 2 - 4

1шт.

2

102R005Y012R

BOLT

M5 x 12mm

4шт.

3

LJ017960

VALVE

2шт.

4

LW005920

BODY

1шт.

Выбрано товаров: 4
