Запчасти Case CX210D LC (35.360.AG[01]) - VAR - 461863 - SOLENOID VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

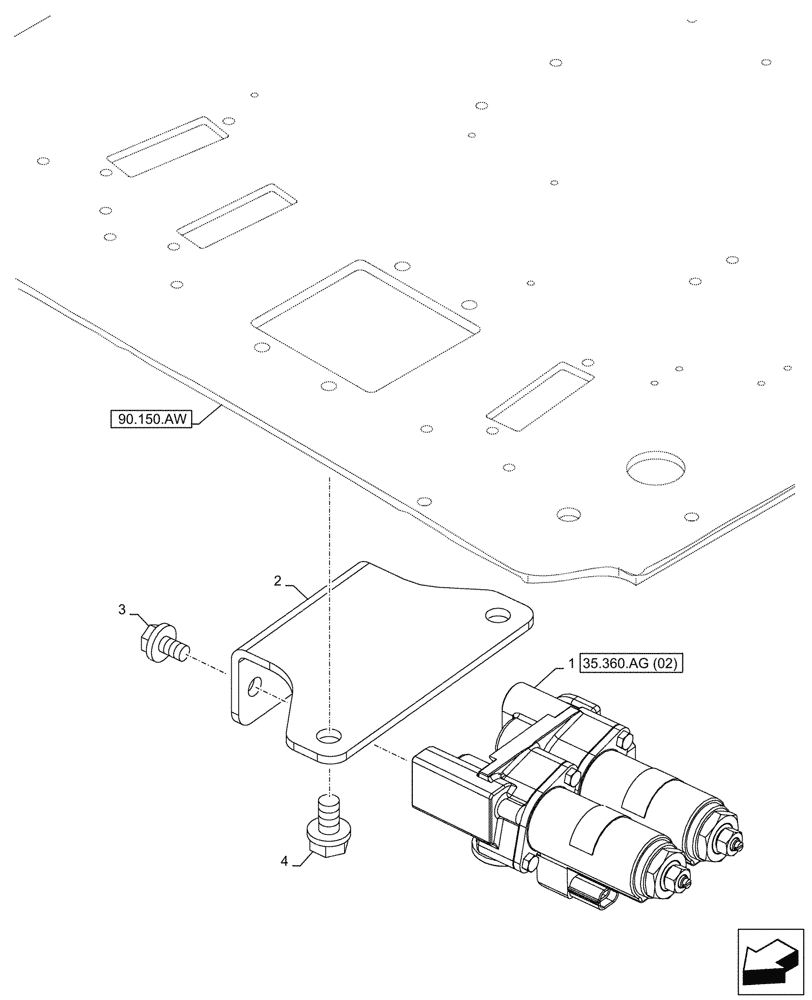

Схема запчастей Case CX210D LC - (35.360.AG[01]) - VAR - 461863 - SOLENOID VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
90.150.aw
2
3
4
1
35.360.ag (02)

Артикул

Название

Примечание

Количество

1

MFJ71500

VALVE SECTION

ASSY

1шт.

2

KHJ28770

BRACKET

1шт.

3

166345A1

BOLT

M8 x 16mm

2шт.

4

166351A1

BOLT,Sems, M10 x 20mm

2шт.

Выбрано товаров: 4
