(35.360.AB[07]) - VAR - 461871 - SHEARS, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D LC (35.360.AB[07]) - VAR - 461871 - SHEARS, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

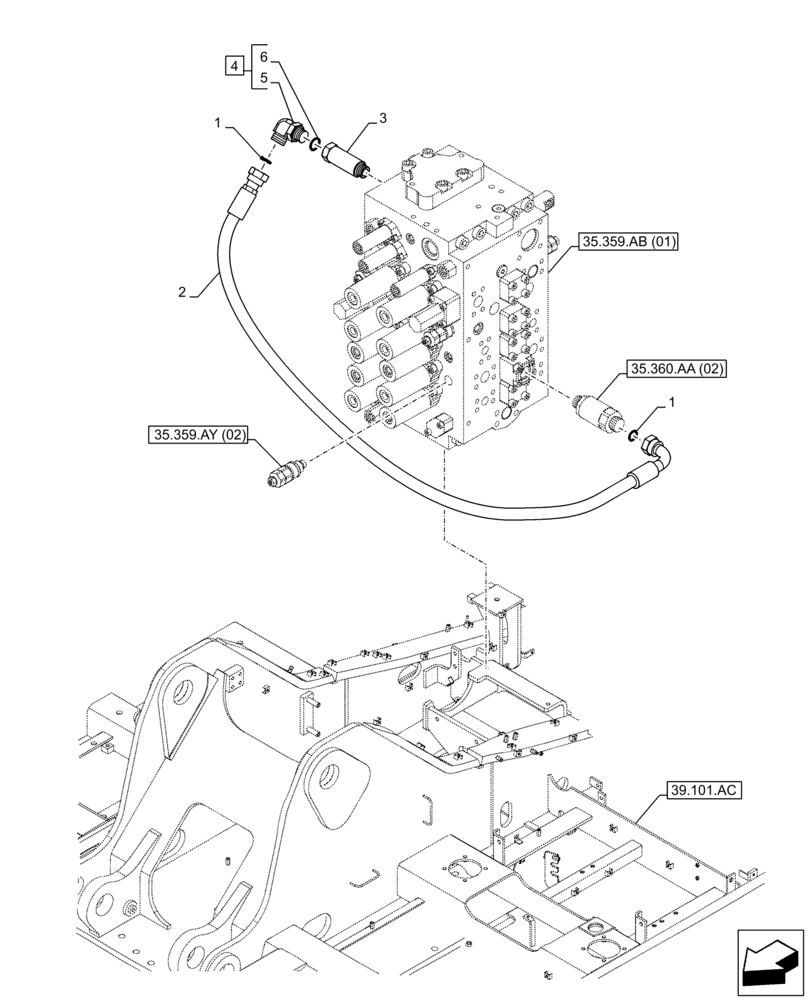

Схема запчастей Case CX210D LC - (35.360.AB[07]) - VAR - 461871 - SHEARS, LINE, AUXILIARY CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
6
35.360.aa (02)
4
39.101.ac
3
1
35.359.ab (01)
1
5
35.359.ay (02)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

2

KBJ19810

HYDRAULIC HOSE

19mm ID x 1200mm

1шт.

3

KHJ26310

STUD

G3/4"

1шт.

4

KHJ1804

ELBOW

G3/4", ASSY, Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 4

1шт.

6

154503A1

O-RING

1шт.

Выбрано товаров: 6
