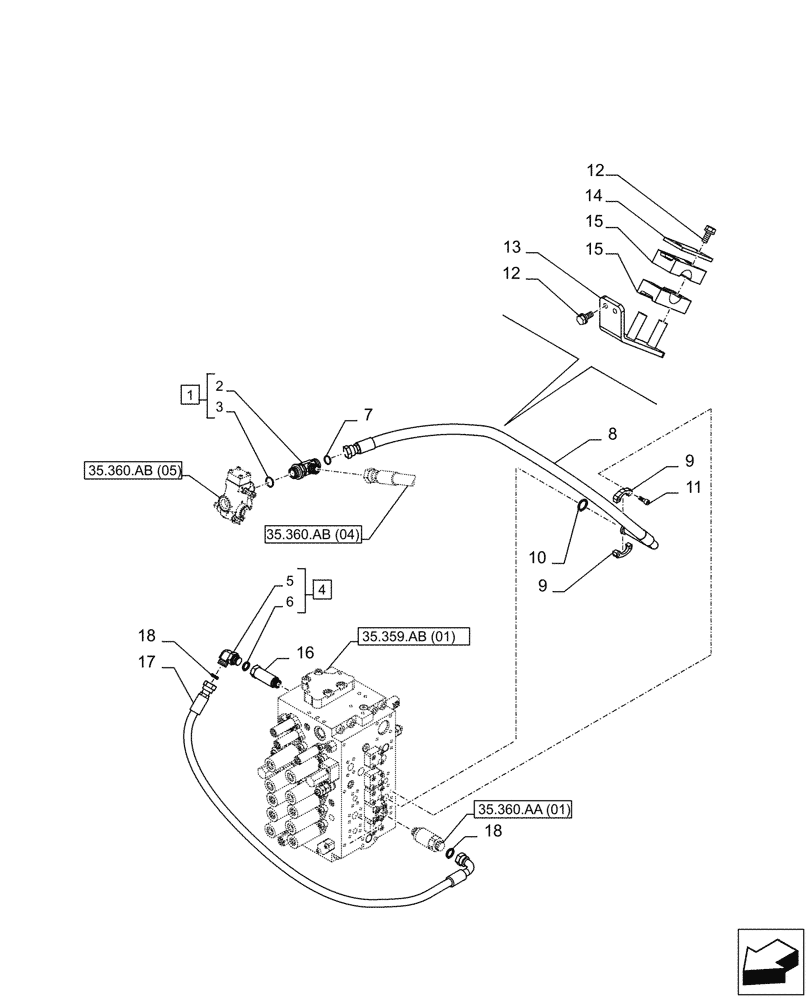

Запчасти Case CX210D LC (35.360.AB[03]) - VAR - 461869 - HAMMER CIRCUIT, SHEARS, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ22660

TEE

ASSY, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 1

1шт.

3

154523A1

O-RING

1шт.

4

KHJ1804

ELBOW

G3/4", ASSY, Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 4

1шт.

6

154503A1

O-RING

1шт.

7

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

8

KBJ15660

HYDRAULIC HOSE

25mm ID x 1550mm

1шт.

9

153459A1

FLANGE

2шт.

10

155211A1

O-RING

1шт.

11

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

12

166052A1

BOLT

M10 x 25mm

4шт.

13

KBJ19820

BRACKET

1шт.

14

KRJ10800

PLATE

1шт.

15

KRJ11450

HOSE CLIP

2шт.

16

KHJ26310

STUD

G3/4"

1шт.

17

KBJ19810

HYDRAULIC HOSE

19mm ID x 1200mm

1шт.

18

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.
