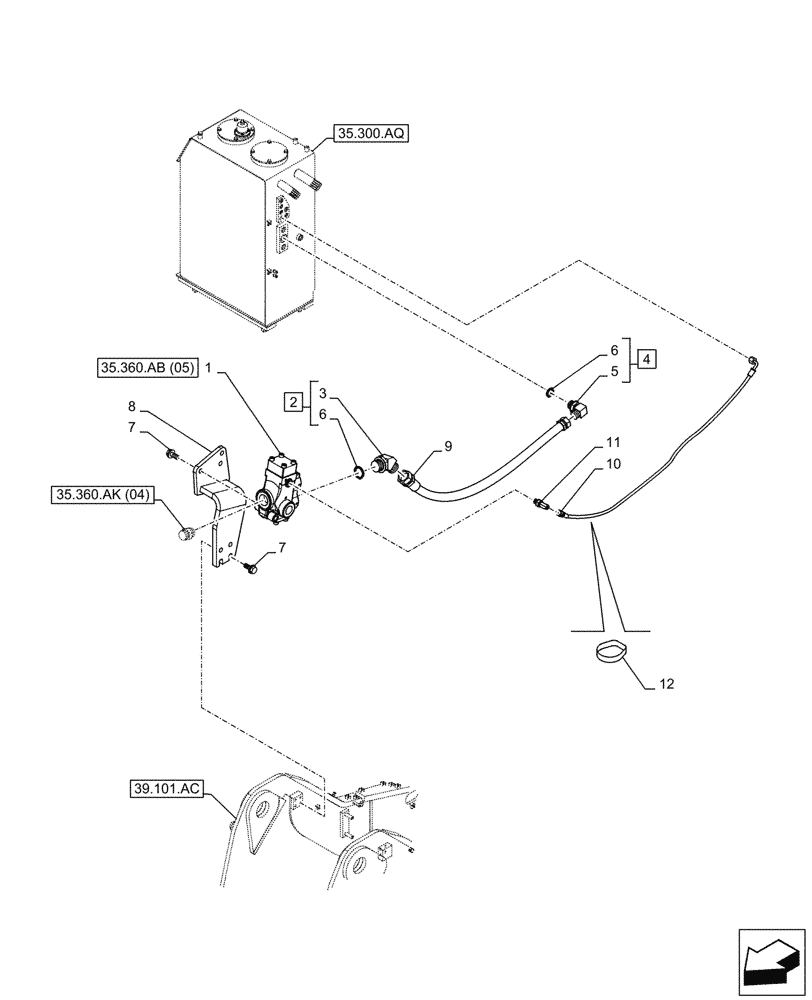

Запчасти Case CX210D LC (35.360.AB[02]) - VAR - 461869 - HAMMER CIRCUIT, SHEARS, LINE, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KHJ10420

VALVE SECTION

1шт.

2

157587A1

ELBOW

G1" x G1", ASSY, Incl 3, 6 (Qty 1)

1шт.

3

NSS

NOT SOLD SEPARAT

45°-Fitting, Incl in 2

1шт.

4

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

G1" x G1", ASSY, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

90°-Fitting, Incl in 4

1шт.

6

154523A1

O-RING

2шт.

7

166352A1

BOLT

M12 x 30mm

6шт.

8

KRJ16050

SUPPORT

1шт.

9

KBJ22210

HYDRAULIC HOSE

25mm ID x 740mm

1шт.

10

KHJ16860

HOSE

06mm ID x 950mm

1шт.

11

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

12

150496A1

MOUNTING CLIP

250mm

1шт.
