(35.360.AA[02]) - VAR - 461871 - RELIEF VALVE, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX210D LC (35.360.AA[02]) - VAR - 461871 - RELIEF VALVE, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

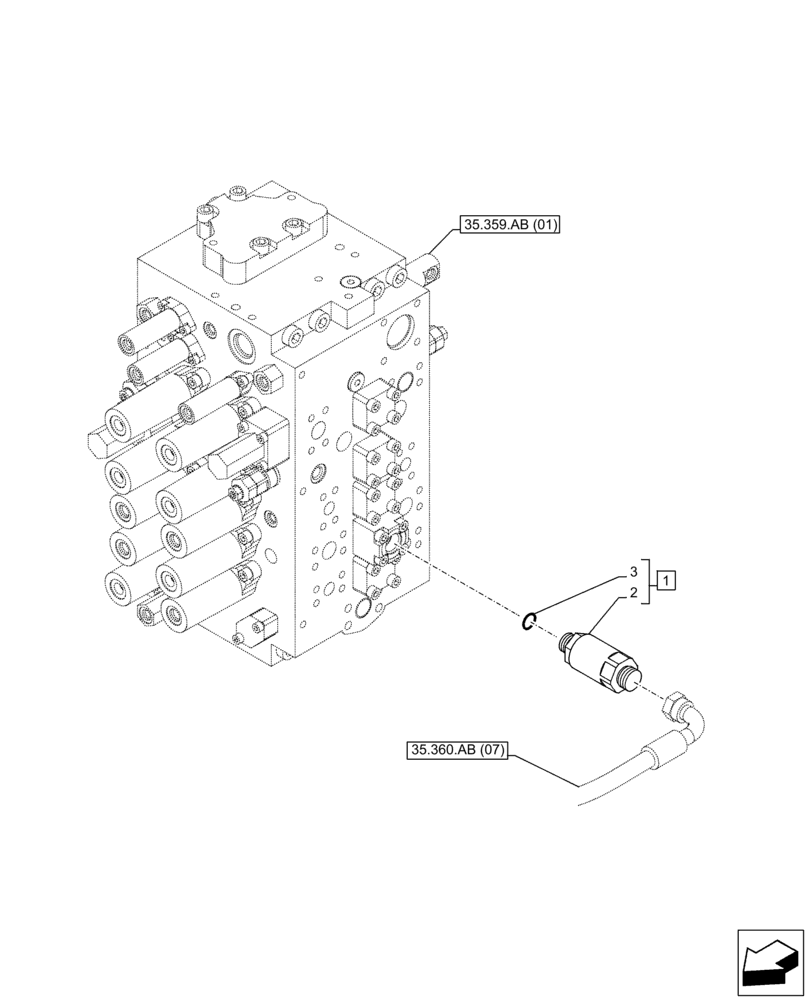

Схема запчастей Case CX210D LC - (35.360.AA[02]) - VAR - 461871 - RELIEF VALVE, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.359.ab (01)
3
35.360.ab (07)
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ10480

VALVE SECTION

ASSY, Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

154503A1

O-RING

1шт.

Выбрано товаров: 3
