(35.359.AY[03]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS

Запчасти Case CX210D LC (35.359.AY[03]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

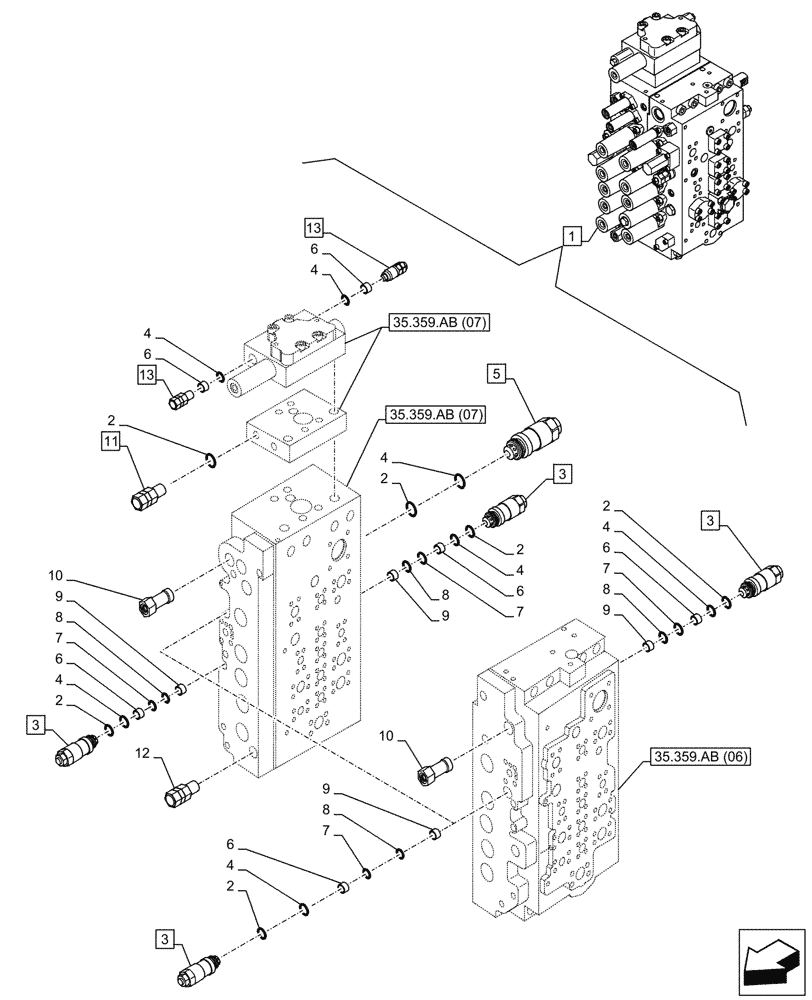

Схема запчастей Case CX210D LC - (35.359.AY[03]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.ab (07)
8
7
11
1
2
5
4
8
2
7
9
3
2
2
6
7
7
4
13
13
4
2
4
9
3
9
4
9
6
6
10
6
3
4
6
8
12
6
8
10
4
2
3
35.359.ab (06)
35.359.ab (07)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ35072

CONTROL VALVE

ASSY, Incl 2 - 13, Serial Range: -C0454

1шт.

See also figure 35.359.AB(05), 35.359.AB(06), 35.359.AB(07), 35.359.AB(08)

1шт.

1

KRJ35073

CONTROL VALVE

ASSY, Incl 2 - 13, Start Serial: D0454

1шт.

See also figure 35.359.AB(05), 35.359.AB(06), 35.359.AB(07), 35.359.AB(08)

1шт.

2

155223A1

O-RING

7шт.

3

LJ00734

HYDRAULIC VALVE

ASSY, Incl 2 (Qty 1), 4 (Qty 1), 6 (Qty 1), 7 - 9

5шт.

4

154463A1

O-RING

8шт.

5

LJ014740

VALVE PRESSURE RELIE

ASSY, Incl 2 (Qty 1), 4 (Qty 1)

1шт.

6

164905A1

BACK-UP RING

7шт.

7

164906A1

O-RING

5шт.

8

163323A1

O-RING

5шт.

9

164575A1

BACK-UP RING

5шт.

10

LJ023210

VALVE

2шт.

11

LJ014780

CHECK VALVE

ASSY, Incl 2 (Qty 1)

1шт.

12

LJ023170

VALVE

1шт.

13

LJ014750

CHECK VALVE

ASSY, Incl 4 (Qty 1), 6 (Qty 1)

2шт.
