(35.359.AY[01]) - RELIEF VALVE, COMPONENTS

Запчасти Case CX210D LC (35.359.AY[01]) - RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

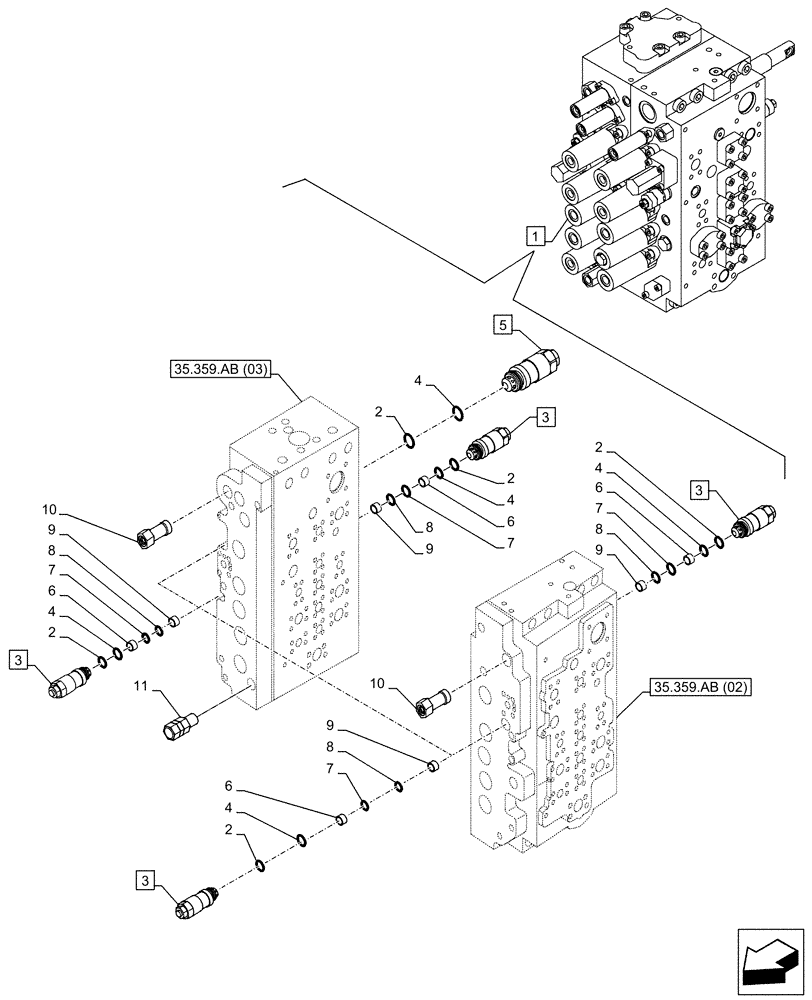

Схема запчастей Case CX210D LC - (35.359.AY[01]) - RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.ab (03)
8
10
11
2
8
9
8
2
4
3
7
3
10
9
6
2
9
4
7
4
2
5
7
6
4
3
6
9
8
6
1
2
3
4
7
35.359.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ35062

CONTROL VALVE

ASSY, Incl 2 - 11, Serial Range: -C0452

1шт.

See also Figure 35.359.AB(01), 35.359.AB(02), 35.359.AB(03), 35.359.AB(04)

1шт.

1

KRJ35063

VALVE

ASSY, Incl 2 - 11, Start Serial: D0452

1шт.

See also Figure 35.359.AB(01), 35.359.AB(02), 35.359.AB(03), 35.359.AB(04)

1шт.

2

155223A1

O-RING

6шт.

3

LJ00734

HYDRAULIC VALVE

ASSY, Incl 2 (Qty 1), 4 (Qty 1), 6 (Qty 1), 7 - 9

5шт.

4

154463A1

O-RING

6шт.

5

LJ014740

VALVE PRESSURE RELIE

ASSY, Incl 2 (Qty 1), 4 (Qty 1)

1шт.

6

164905A1

BACK-UP RING

5шт.

7

164906A1

O-RING

5шт.

8

163323A1

O-RING

5шт.

9

164575A1

BACK-UP RING

5шт.

10

LJ023210

VALVE

2шт.

11

LJ023170

VALVE

1шт.
