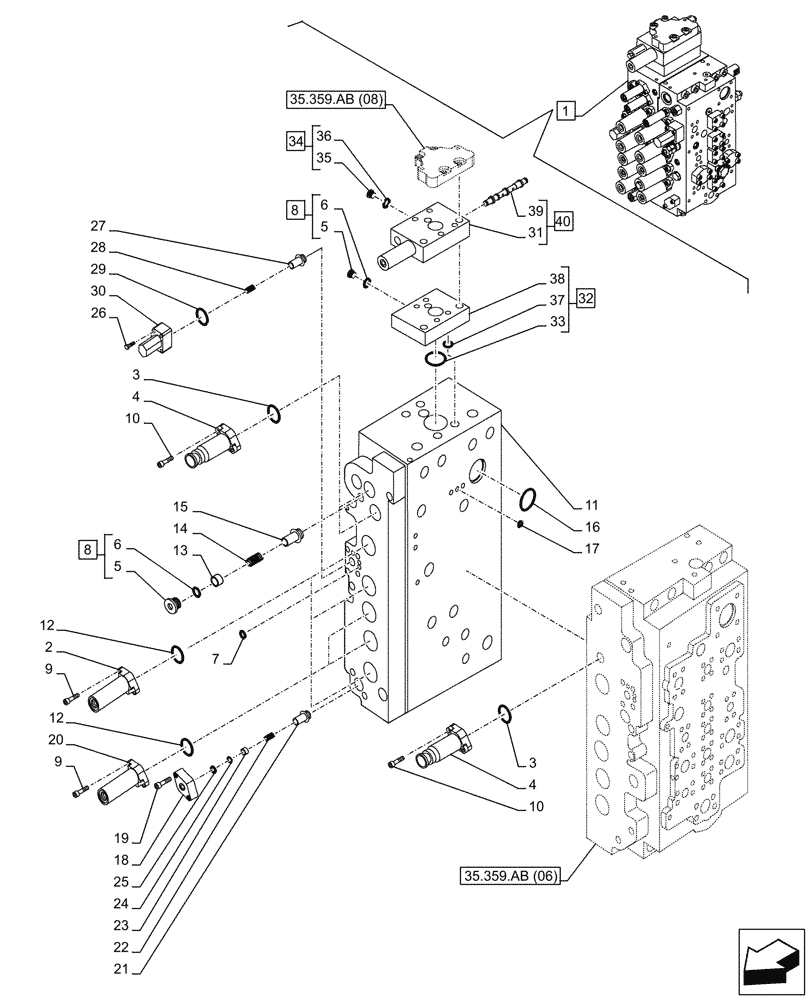

Запчасти Case CX210D LC (35.359.AB[07]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KRJ35072

CONTROL VALVE

ASSY, Incl 2 - 39, Serial Range: -C0454

1шт.

See also Figure 35.359.AB (05), 35.359.AB (06), 35.359.AB (08), 35.359.AY (03)

1шт.

1

KRJ35073

CONTROL VALVE

ASSY, Incl 2 - 39, Start Serial: D0454

1шт.

See also Figure 35.359.AB (05), 35.359.AB (06), 35.359.AB (08), 35.359.AY (03)

1шт.

2

LR023640

CAP

3шт.

3

LE018920

O-RING,3.53mm Thk x 25.7mm ID, Cl 6

4шт.

4

LR018610

CAP

3шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 8

2шт.

6

154487A1

O-RING

2шт.

7

LE027170

O-RING

3шт.

8

163370A1

PLUG

ASSY, Incl 5, 6

2шт.

9

160287A1

BOLT,Hex Skt

10шт.

10

LUC0118

BOLT,Hex Skt Hd

6шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

12

LE026800

O-RING

5шт.

13

LH007440

SPACER

1шт.

14

LG00417

COMPRESSION SPRING

1шт.

15

LJ00976

POPPET

1шт.

16

LE025860

O-RING

10шт.

17

LE026750

O-RING

8шт.

18

LH00250

CAP

1шт.

19

LA017930

BOLT

2шт.

20

LR023650

CAP

2шт.

21

LJ00727

VALVE POPPET

1шт.

22

LG00341

SPRING

1шт.

23

LH004960

SPACER

1шт.

24

LE027190

O-RING

1шт.

25

LE027220

RING

1шт.

26

LA017920

BOLT

4шт.

27

LJ022700

POPPET

1шт.

28

163394A1

SPRING

1шт.

29

LE027300

O-RING

1шт.

30

LJ022720

VALVE

1шт.

31

NSS

NOT SOLD SEPARAT

Body Valve, Incl in 1

1шт.

32

LJ014770

CONNECTING BLOCK

ASSY, Incl 33, 37, 38

1шт.

33

154625A1

O-RING

1шт.

34

163369A1

PLUG

ASSY, Incl 35, 36

1шт.

35

NSS

NOT SOLD SEPARAT

Plug, Incl in 34

1шт.

36

154475A1

O-RING

1шт.

37

LE012520

O-RING

3шт.

38

NSS

NOT SOLD SEPARAT

Body, Incl in 32

1шт.

39

NSS

NOT SOLD SEPARAT

Spool, Incl in 40

1шт.

40

LJ014760

HYD VALVE SECTION

ASSY, Incl 31, 39

1шт.
