Запчасти Case CX210D LC (35.357.AQ[02]) - PILOT VALVE, DRAIN LINE (35) - HYDRAULIC SYSTEMS

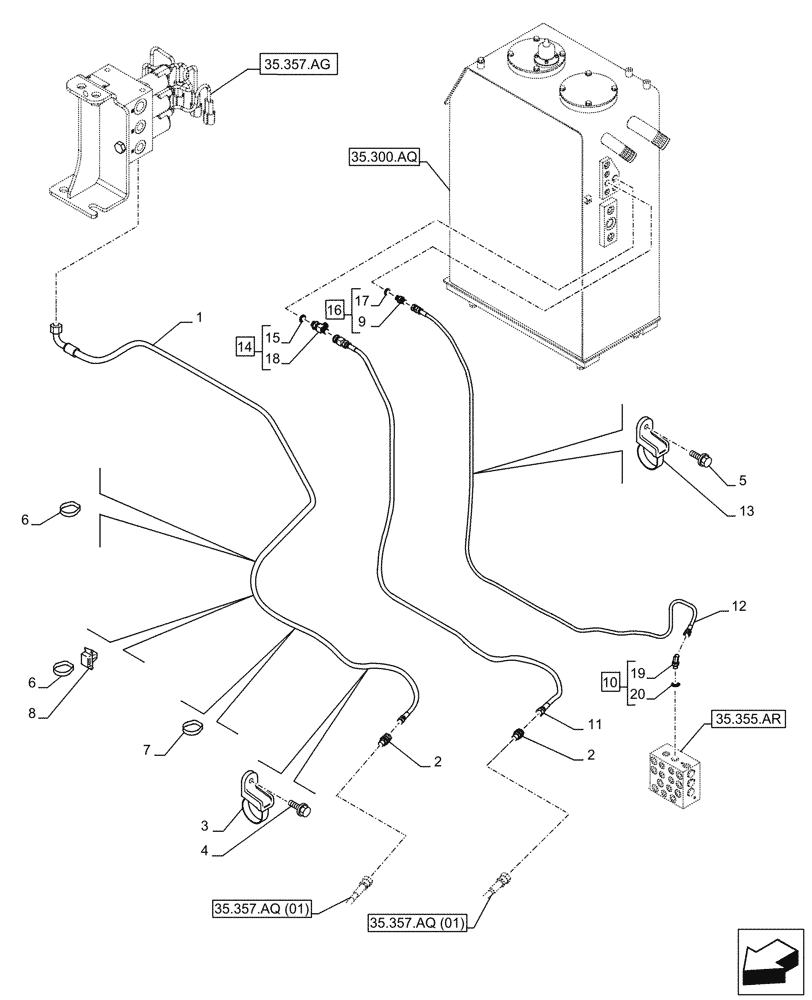

Схема запчастей Case CX210D LC - (35.357.AQ[02]) - PILOT VALVE, DRAIN LINE (35) - HYDRAULIC SYSTEMS
35.355.ar
19
8
12
7
6
16
9
3
10
20
2
1
11
14
15
5
13
18
17
2
4
6
35.300.aq
35.357.ag
35.357.aq (01)
35.357.aq (01)

Артикул

Название

Примечание

Количество

1

KHJ26810

HOSE ASSY.

9mm ID x 2550mm

1шт.

2

162826A1

ADAPTER

G3/8"

2шт.

3

KHR2581

CLAMP

2шт.

4

KHJ1215

BOLT,Spcl

1шт.

5

KHJ2298

BOLT,Spcl

6шт.

6

150496A1

MOUNTING CLIP

6шт.

7

150498A1

MOUNTING CLIP

2шт.

8

KHR10220

MOUNTING CLIP

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 16

1шт.

10

KHJ28580

ELBOW

ASSY, Incl 19 - 20

1шт.

11

KHJ2308

HOSE

9mm ID x 2150mm

1шт.

12

KHJ2069

HOSE

6mm ID x 2300mm

1шт.

13

KHR2582

CLAMP

4шт.

14

164107A1

TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT

ASSY, Incl 15, 18

1шт.

15

154475A1

O-RING

1шт.

16

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 9, 17

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

18

NSS

NOT SOLD SEPARAT

T-Fitting, Incl in 14

1шт.

19

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 10

1шт.

20

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

Выбрано товаров: 20
