Запчасти Case CX210D LC (35.357.AD) - PILOT VALVE, OIL LINE (35) - HYDRAULIC SYSTEMS

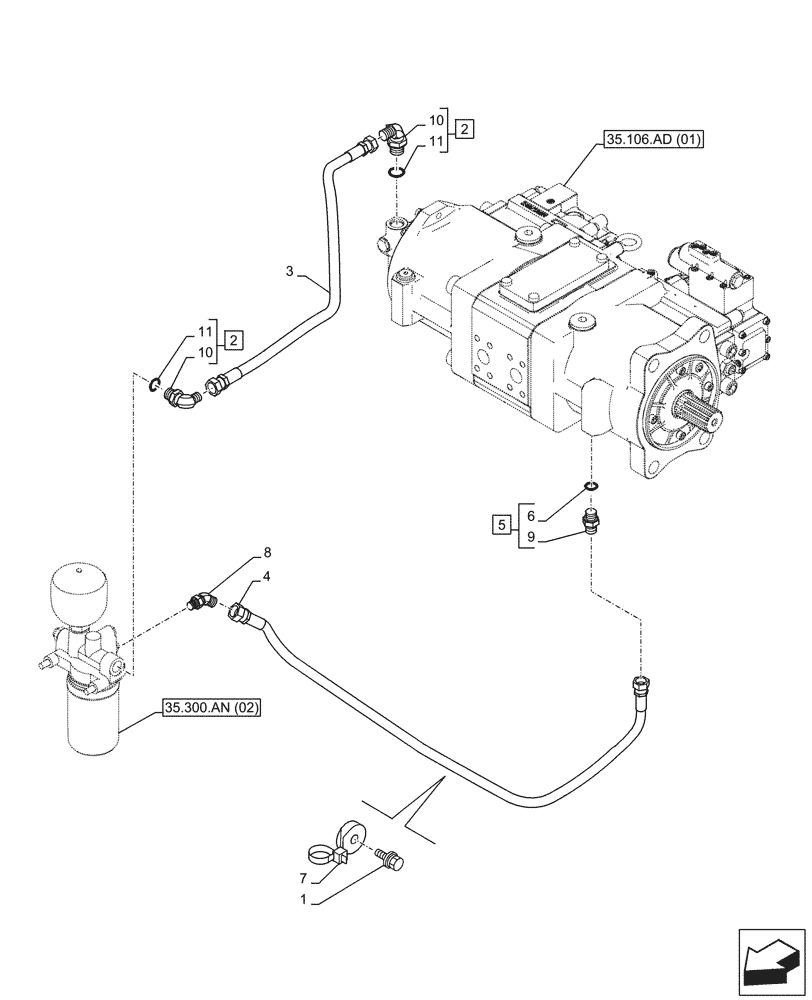

Схема запчастей Case CX210D LC - (35.357.AD) - PILOT VALVE, OIL LINE (35) - HYDRAULIC SYSTEMS
35.106.ad (01)
1
8
9
5
11
10
7
4
10
2
11
3
6
2
35.300.an (02)

Артикул

Название

Примечание

Количество

1

KHJ2298

BOLT,Spcl

M10 x 25mm

1шт.

2

KHJ29500

ELBOW

ASSY, Incl 10, 11

2шт.

3

KHJ2460

HYDRAULIC HOSE

370mm

1шт.

4

KHJ11520

HYDRAULIC HOSE,9.52 mm ID x 900.00 mm

9mm ID x 900mm, Serial Range: -C0466

1шт.

4

KHJ33810

HOSE

9mm ID x 880mm, Start Serial: D0466

1шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

G3/8" x G3/8", ASSY, Incl 6, 9

1шт.

6

154475A1

O-RING

1шт.

7

KHR2584

CLAMP

1шт.

8

KHJ28710

ELBOW

, Serial Range: -C0466

1шт.

8

KHJ28750

ELBOW

G1/4" x G3/8", Start Serial: D0466

1шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

2шт.

11

154487A1

O-RING

2шт.

Выбрано товаров: 13
