(35.355.AO[01]) - JOYSTICK, DRAIN LINE, BLOCK

Запчасти Case CX210D LC (35.355.AO[01]) - JOYSTICK, DRAIN LINE, BLOCK (35) - HYDRAULIC SYSTEMS

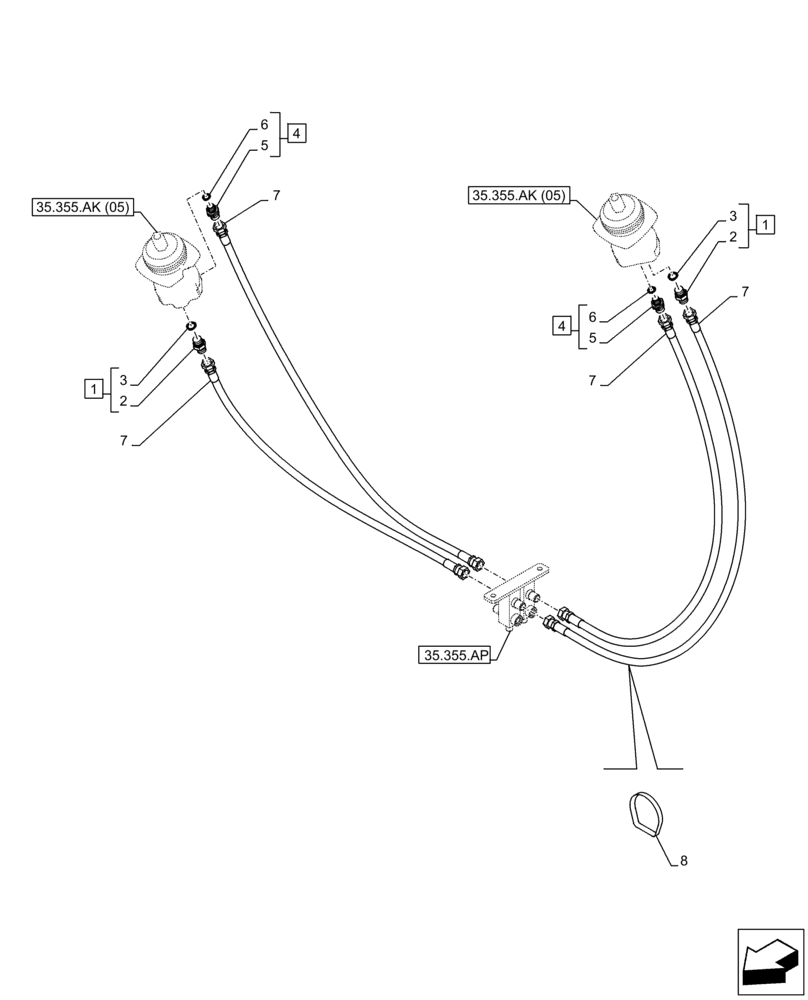

Схема запчастей Case CX210D LC - (35.355.AO[01]) - JOYSTICK, DRAIN LINE, BLOCK (35) - HYDRAULIC SYSTEMS
6
1
8
5
6
7
4
1
7
4
35.355.ak (05)
3
3
35.355.ap
5
2
35.355.ak (05)
7
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

G3/8" x G3/8", ASSY, Incl 2 - 3

2шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

2шт.

3

154475A1

O-RING

2шт.

4

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

ASSY, Incl 5 - 6

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

159213A1

HYDRAULIC HOSE

9mm ID x 1150mm

4шт.

8

150498A1

MOUNTING CLIP

300mm

2шт.
