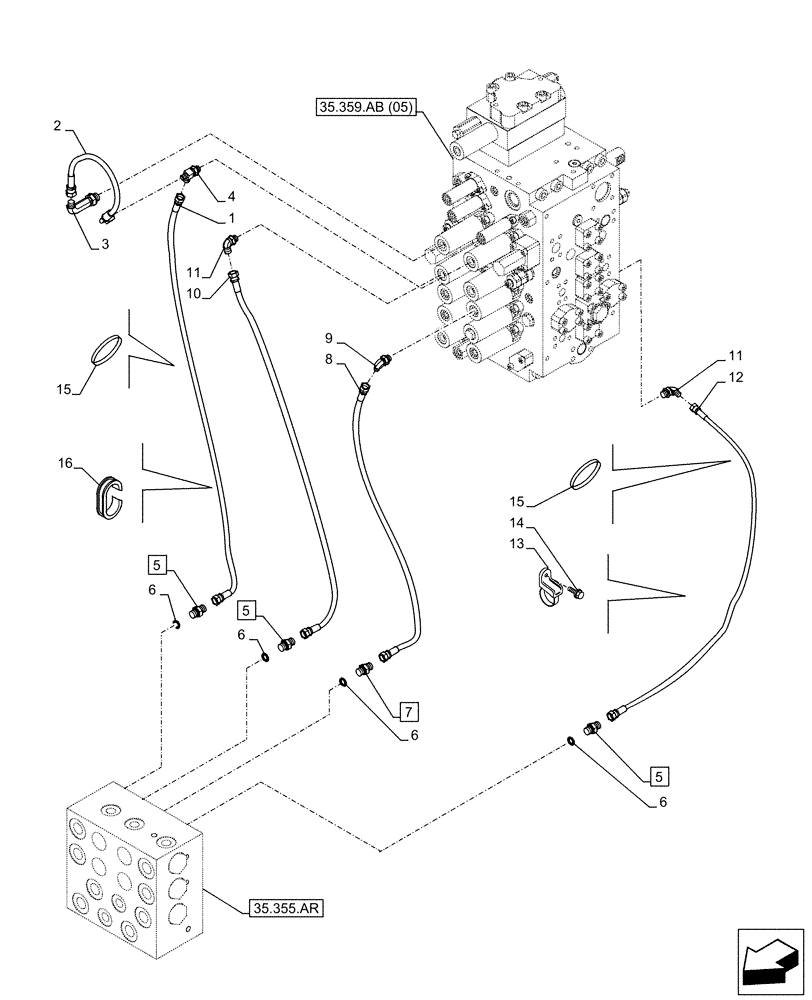

Запчасти Case CX210D LC (35.355.AC[07]) - VAR - 461558 - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KHJ2100

FLEXIBLE HOSE

9mm ID x 1500mm

1шт.

2

KHJ2342

HOSE

6mm ID x 380mm

1шт.

3

KHJ28880

ELBOW

G3/8" x G1/4"

1шт.

4

KHJ13900

TEE

G3/8" x G1/4" x G3/8"

1шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 6 (Qty 3)

3шт.

6

150031A1

O-RING,10mm ID x 24mm OD

4шт.

7

153378A1

ADAPTER

ASSY, G3/8" x G1/4", Incl 6 (Qty 1)

1шт.

8

KHJ2057

HOSE

6mm ID x 1450mm

1шт.

9

KHJ28690

ELBOW

G3/8" x G1/4"

1шт.

10

KHJ2010

HOSE

9mm ID x 1450mm

1шт.

11

KHJ28590

ELBOW

G3/8" x G3/8"

2шт.

12

KHJ2318

HOSE

9mm ID x 1400mm

1шт.

13

KHR2581

CLAMP

M8

2шт.

14

KHJ1215

BOLT,Spcl

2шт.

15

150498A1

MOUNTING CLIP

300mm

4шт.

16

KRH10610

SEAL PROTECTION

290mm

1шт.
